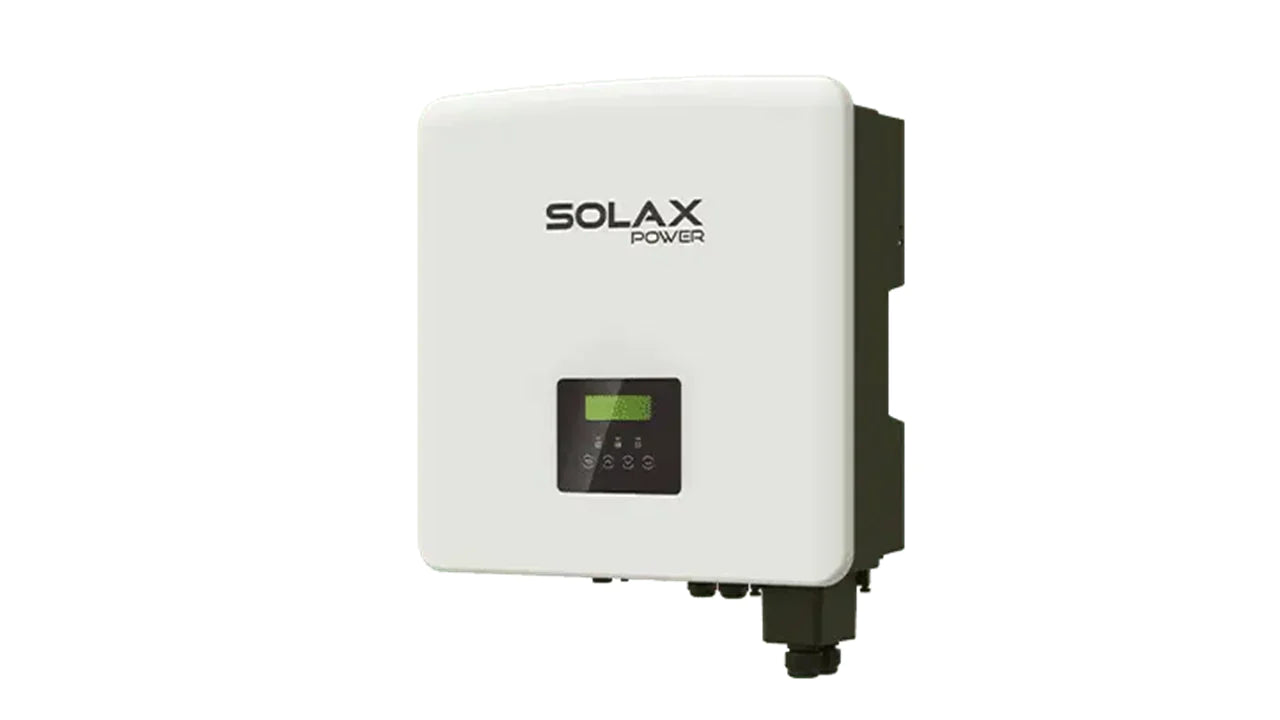

SolaX X3-FIT G4 10kW (3ph AC Coupled Inverter)

SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 10kW

#1: X3-FIT-10

To operate the SolaX charger effectively, a Modbus energy meter is required for energy measurement, and a WiFi stick is necessary for connectivity to the SolaX Cloud platform, enabling remote monitoring and control of the solar energy system.

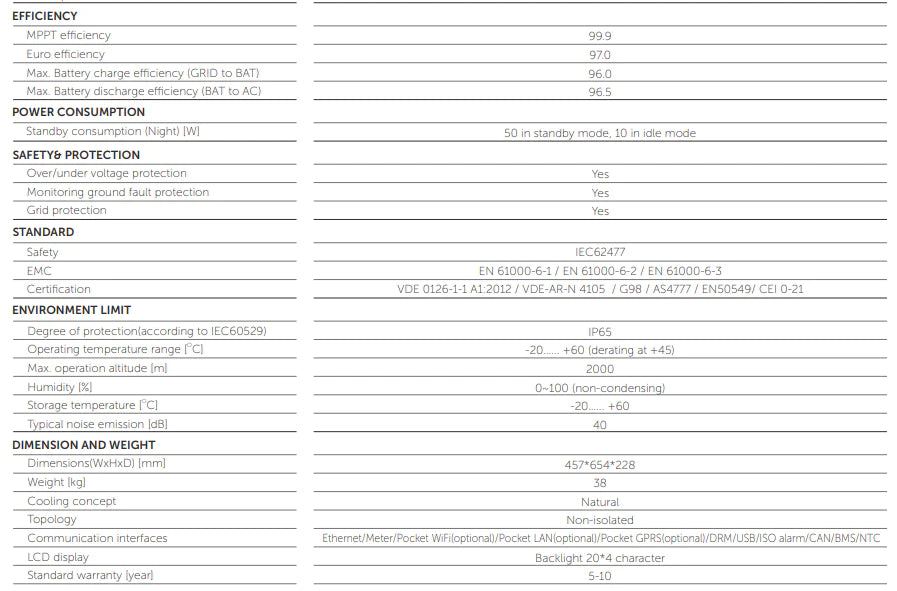

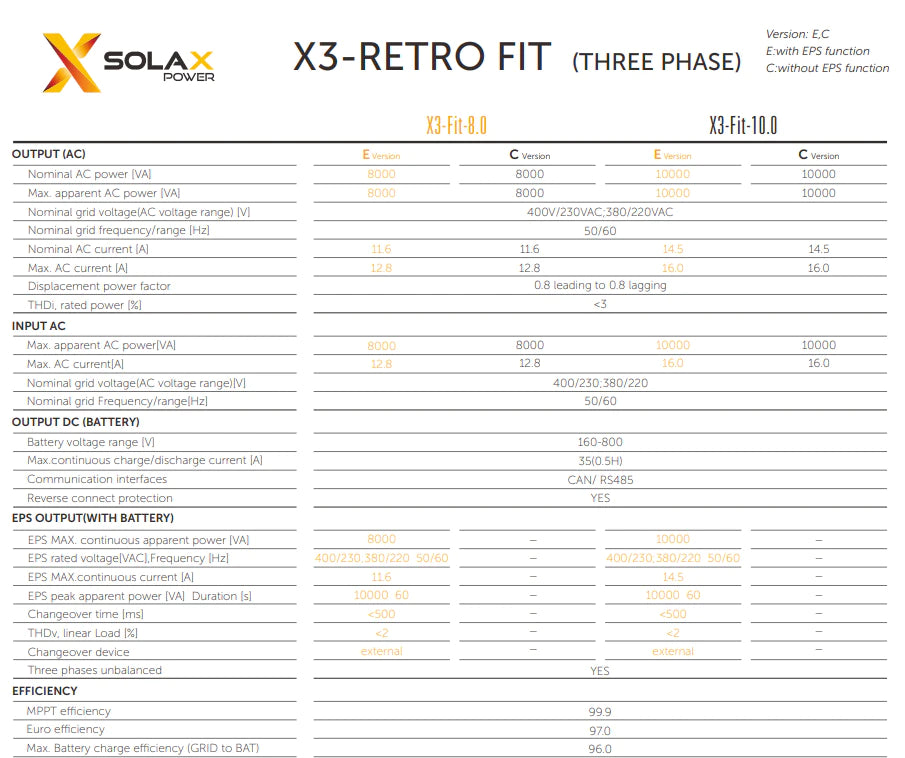

DATA SHEET SLOAX X3 INVERTER

USER GUIDE SLOAX X3 INVERTER

WARRANTY SLOAX X3 INVERTER

G99 CERTIFICATION SLOAX X3 INVERTER

The Three-Phase Retro Fit 10.0kW AC Coupled inverter comes with the following features:

• Compatibility: Designed to work with high voltage batteries.

• Protection Rating: Boasts an IP65 protection rating, ensuring resistance to dust and water ingress.

• Cooling and Maintenance: Utilizes natural cooling, resulting in low maintenance requirements.

• Efficiency: Offers a maximum efficiency of up to 96%.

• EPS Functionality: The W version of the inverter includes a built-in EPS (Emergency Power Supply) function. To fully utilize this function, an external backup box is required.

• Battery Configuration: Suitable for use with 2 to 4 Solax Triple Power Batteries. It's important to note that only one size of battery per system is supported.

• Paralleling Capability: Allows for parallel operation of up to 5 units per site, offering scalability in system configuration.

These features make the inverter suitable for a range of applications, providing compatibility with high voltage batteries, robust protection, and emergency power supply functionality. The ability to parallel up to 5 units enhances flexibility in designing and scaling solar energy systems.
