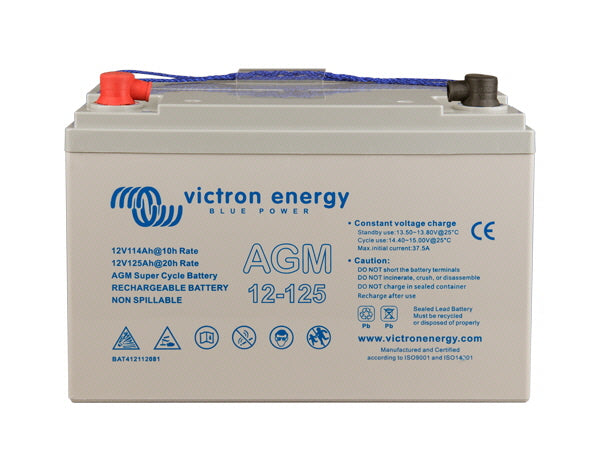

BAT412112081 - Victron AGM Super Cycle Batteries feature an exceptionally low internal resistance, rendering them ideal for high-current discharge applications such as inverters, thrusters, and winches. VRLA AGM: designed to last 7-10 years.

Features of the - 125Ah - 12V Victron AGM Super Cycle Battery:

Innovative Design:

• These AGM Super Cycle batteries are the outcome of recent advancements in battery electrochemistry.
• The positive plate paste exhibits reduced sensitivity to softening, even after repeated 100% discharge cycles, while new electrolyte additives diminish sulfation during deep discharge.

Exceptional Depth of Discharge (DoD) Performance:

• Rigorous testing demonstrates that the Super Cycle battery can endure at least three hundred 100% DoD cycles.
• Tests involve daily discharge to 10.8V with I = 0.2C20, followed by approximately two hours of rest in a discharged state, succeeded by recharge with I = 0.2C20.
• Most batteries suffer damage within 100 cycles due to the two-hour rest period in a discharged state, but not the Super Cycle battery.
• We recommend the Super Cycle battery for applications where occasional discharge to 100% DoD or frequent discharge to 60-80% DoD is anticipated.

Compact and Lightweight:

• Thanks to the new chemistry, these batteries are slightly smaller and lighter compared to our standard deep cycle AGM batteries.

Low Internal Resistance:

• The internal resistance is marginally lower than that of our standard deep cycle AGM batteries.

Dimensions:

• Length x Width x Height: 330 x 170 x 214mm
• Weight: 33kg

125Ah-12v Victron AGM Datasheet
