Solis - 6kW Hybrid 5G Energy Storage Inverter with DC switch for solar battery storage

Solis 6kW Hybrid  Energy Storage Inverter

#1: SOL-6K-RHI-48ES-5G-DC Storage Systems - Hybrid Inverter
#3: S5-EH1P6K-L

Solis S5-EH1P6K-L Hybrid Inverter - Product Overview:

• Inverter Type: Solis 5G Hybrid inverter designed for both load shedding support and power savings during peak demands.

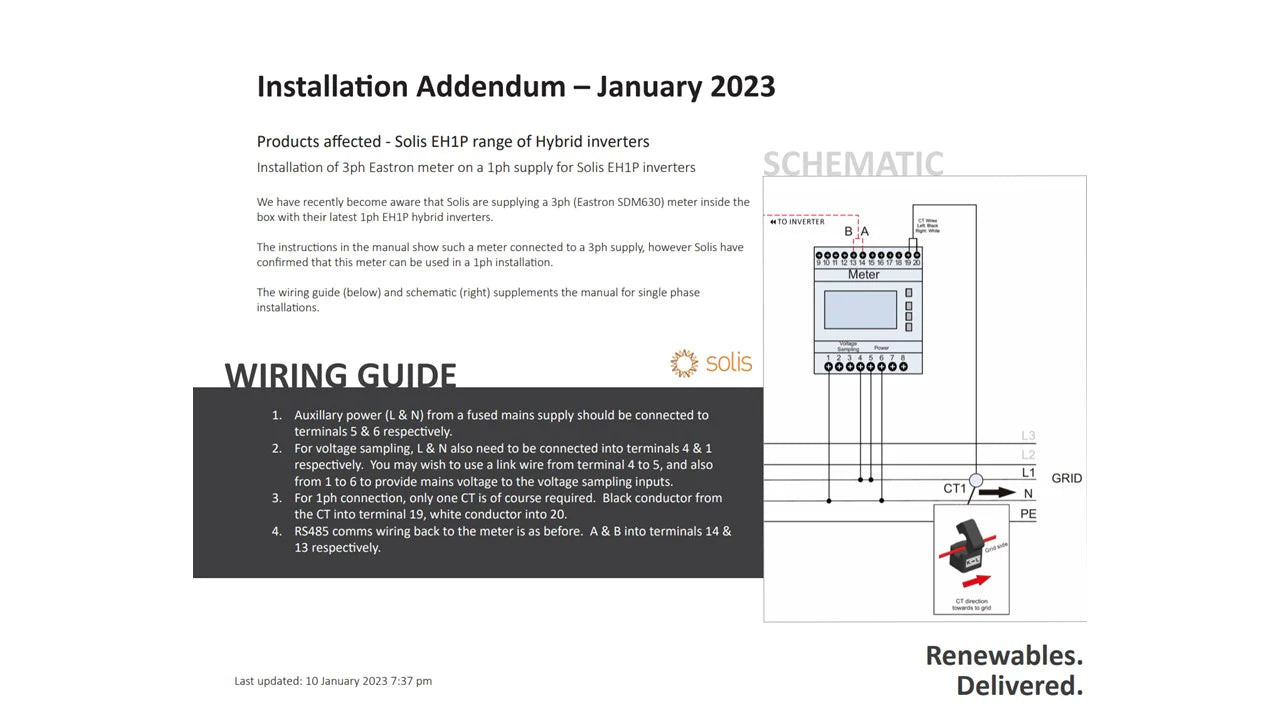

• Meter and CT Clamp: Supplied with a 3-phase energy meter (Eastron SDM630) and CT clamp, adaptable for 1-phase installations.

• Design Features:

  • Fanless design with an IP65 rating.
  • High charge and discharge efficiency.
  • Multiple work modes for maximum self-consumption.
  • Intelligent Battery Management System (BMS) function.
  • 24-hour real-time intelligent energy management.
  • Remote control and upgrade capabilities.

• Product Specifications:

  • Model: S5-EH1P6K-L
  • Weight: 22 kg
  • Rated Power: 6,000 W
  • Min PPT Voltage: 120 V
  • Max PPT Voltage: 520 V
  • DC Startup Voltage: 120 V
  • DC Shutdown Voltage: 90 V
  • Max Input Voltage: 600 V
  • Max DC Power: 8,000 W
  • Max AC Power (5 Minutes): 6,001 W
  • Surge AC Power (1 Second): 6,600 W
  • Max DC Current: 30 A
  • Max DC Inputs: 2
  • DC Fuses: 0
  • Connector: MC4
  • Included Connectors: 4
  • Euro Efficiency: 96.8%
  • Transformer: None
  • MPPT Quantity: 2
  • Integrated DC Switch: Yes
  • Warranty: 5 years

• Customer Ratings:

  • Rated 5.0 based on 3 reviews.
  • 100% 5-star ratings from customers.

Note: The product is lauded for its fanless design, high efficiency, various work modes, intelligent BMS function, and real-time energy management. Additionally, it comes with a 3-phase meter and CT clamp, offering versatility for both 1-phase and 3-phase installations.

6kW Solis Data sheet

6kW Solis Instruction Manual

6kW Solis Warranty

6kW Solis G99 Certificate
