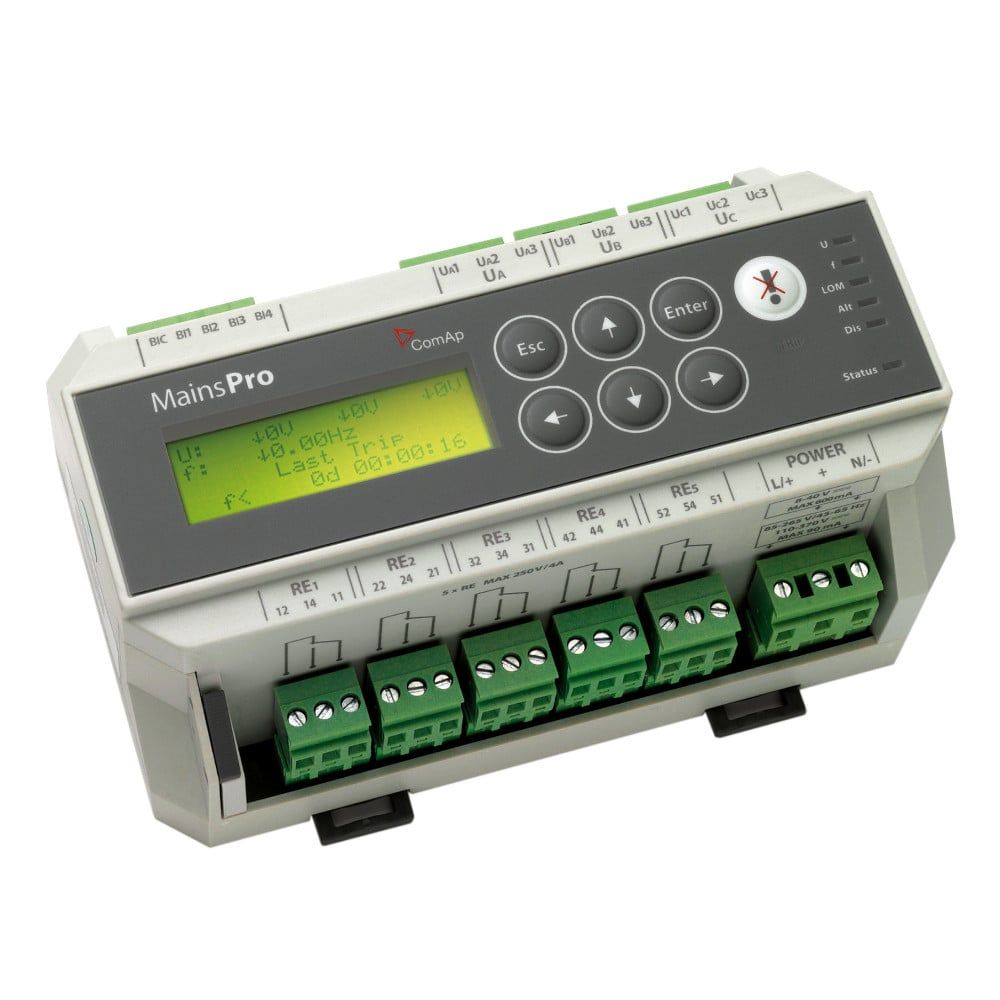

ComAp MainsPro G99 Mains Protection Relay

ComAp MainsPro G99 Mains Protection Relay

MainsPro is a G99 protection relay designed for mains-to-parallel applications, including renewable energy sources like photovoltaic plants.

It offers adjustable protections for voltage, frequency, and loss of mains to ensure the safety of both the distribution network and the generators.

When generating power in parallel with the mains, 'loss of mains' protection is crucial to prevent feeding electricity into an isolated grid, which could cause equipment damage or safety hazards.

KEY FEATURES:

• Unmatched safety for installers and service engineers
• Compatibility with DNO testing procedures
• True RMS measurement for enhanced accuracy and reliable fault evaluation
• Vector Shift and Rate of Change of Frequency (ROCOF) protections in a single unit, allowing the best fit for securing your site
• Symmetrical components for improved detection of voltage asymmetry failures
• Two-stage settings for voltage and frequency protections to handle both short-term and long-term disturbances with appropriate priority
• Five freely assignable relay outputs for a wide range of signalling and trip methods
• Four freely assignable binary switches for remote operation adjustments
• Adjustable time delay for automatic fault reset, eliminating the need for on-site personnel
• Universal power supply: 8-40 VDC, 85-265 VAC, 110-370 VDC
• Selectable voltage range: 120/230/400 VAC with over-range capability to 156/290/520 VAC, making the unit adaptable to various applications
• Supports both 3-phase and 1-phase applications
• Records the last five trips, providing evidence of the cause of trips
