ComAp MainsPro G99TT Protection Relay (With Seal)

The inclusion of G99 functions came about due to the UK's adoption of the EU Commission Regulation on harmonizing network standards, specifically the Requirements for Generators (RfG), into GB Distribution and Grid Codes.

A significant alteration is the transition from Vector to ROCOF (Rate of Change of Frequency) protection for detecting the rate of change in system frequency, achieved through continuous sampling of mains voltage frequency. ROCOF now stands as the sole approved method for detecting Loss of Mains.

The unit's protection settings are established during manufacturing, with certain settings permanently fixed and others locked to authorized personnel only.

Notable Features:

• Convenient setup via a user-friendly interface
• Full compliance with ENA EREC G99 Type Testing
• Accurate True RMS measurement
• Mandatory for all new installations in the UK since April 27, 2019
• Wide power supply and measurement range
• Simplified wiring with detachable connectors
• Remote binary communication capability

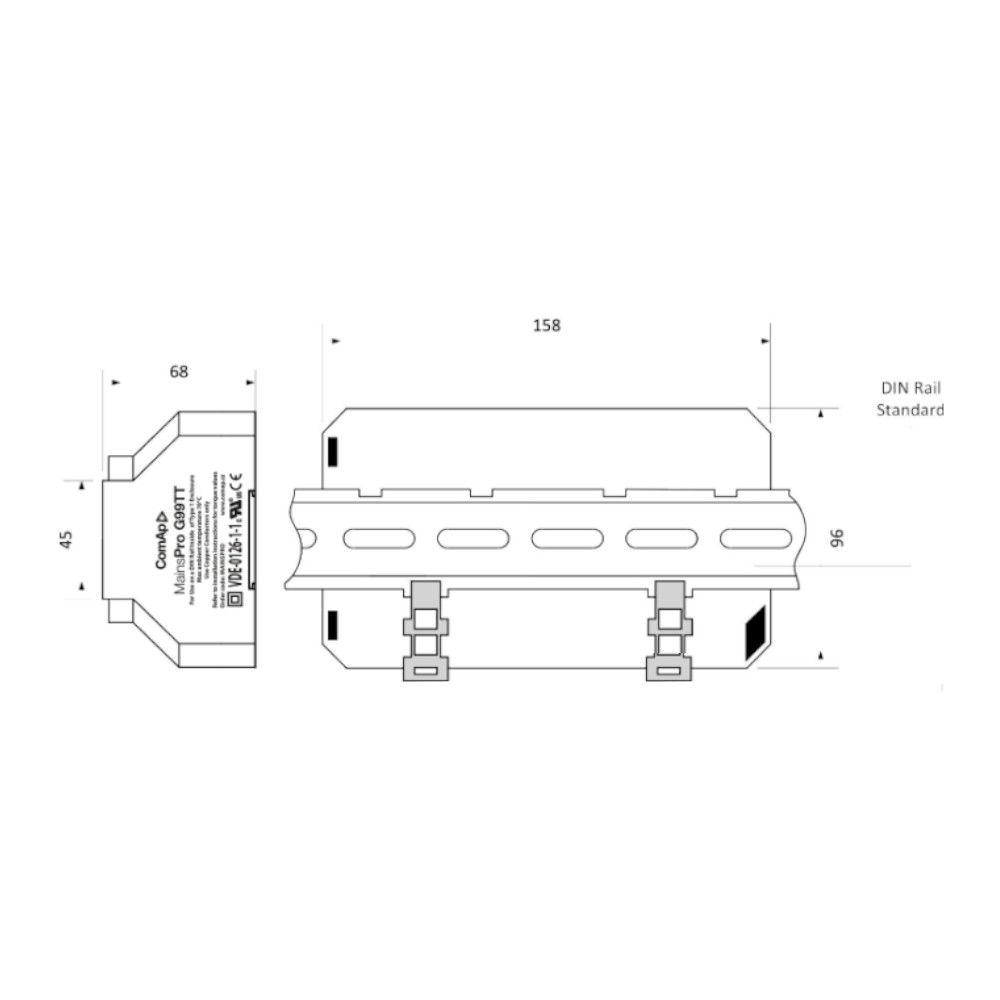

• Suitable for standard DIN rail installation
• Comprehensive frequency, voltage, and loss of mains protections
• History tracking of the last five events
• Built-in mechanical lock for securing settings
• Breaker failure protection and watchdog functionality
• Resistance to frequency jumps
• Two-stage settings for voltage and frequency protections
• Support for both 3-phase and 1-phase applications
• Voltage protection settings adjustable exclusively by authorized personnel
• IP20 Protection rating
• 2-year warranty
• Weight: 1.0kg
