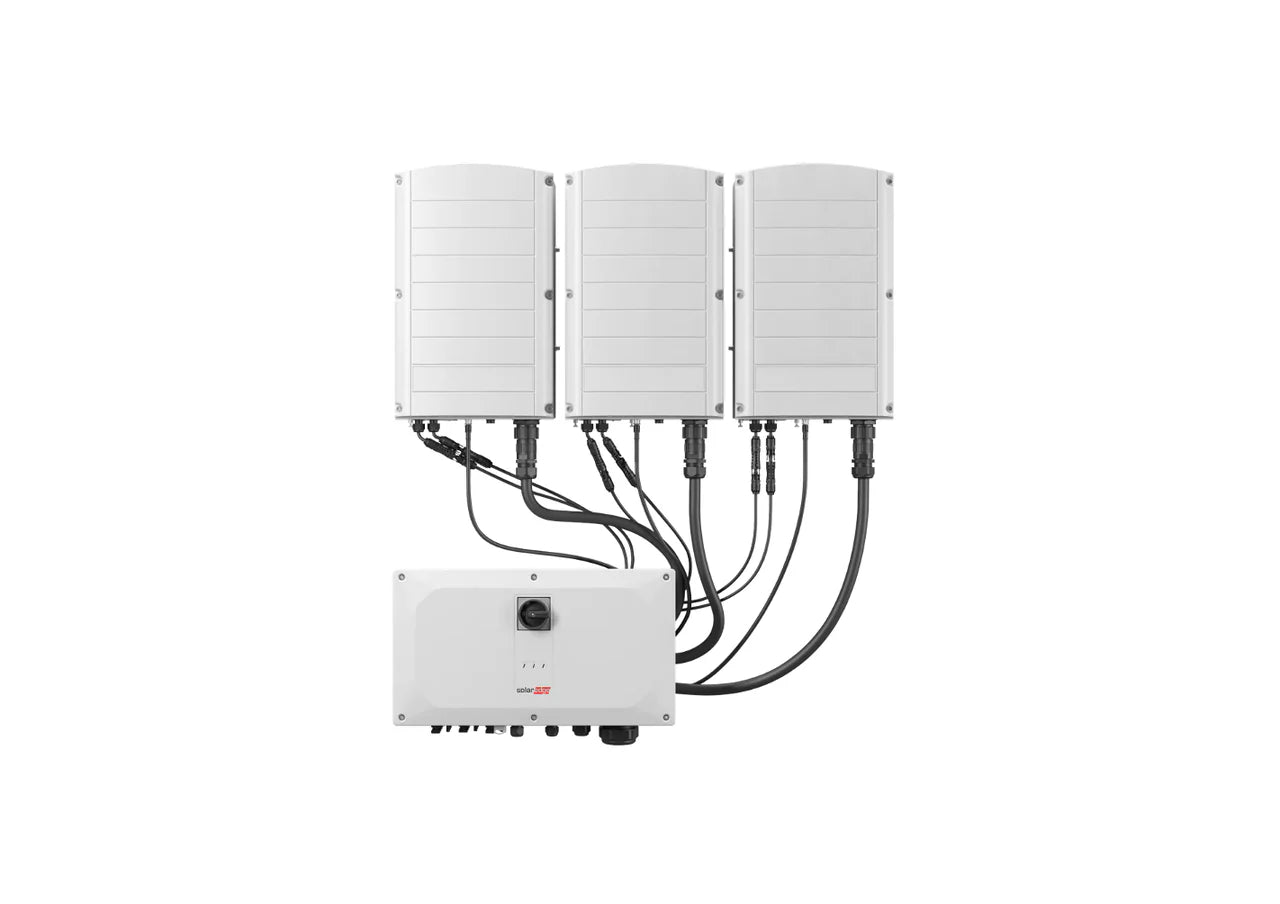

SolarEdge - 100kW Synergy Manager SWITCH DC Switch, MC4, DC SPD

The provided information describes a Three Phase Synergy Inverter with several notable features and specifications. Here's a breakdown of the key details:

Main Features:

1. Pre-commissioning Feature:

   • Automated validation of system components and wiring before grid connection.

2. Easy Installation:

   • Designed for a straightforward 2-person installation.
   • Lightweight, modular design with each inverter comprising 2 or 3 Synergy Units and one Synergy Manager.

3. Independent Operation:

   • Each Synergy Unit operates independently, enabling higher uptime and easy serviceability.

4. Safety Features:

   • Built-in thermal sensors for detecting faulty wiring, enhancing protection and safety.
   • Built-in arc fault protection and optional rapid shutdown (dependent on Synergy Manager used).
   • Integrated DC safety switch eliminates the need for external DC isolators.

5. Performance Optimization:

   • Built-in PID (Potential-Induced Degradation) mitigation for maximized system performance.

6. Surge Protection:

   • Monitored and field-replaceable surge protection devices, including integrated RS485 and Type 2 DC SPDs.
   • Optional Type 2 AC SPD.

Specifications:

• Weight: 114 kg
• Rated Power: 100,000 W
• Min PPT Voltage: 0 V
• Max PPT Voltage: 0 V
• DC Startup Voltage: 0 V
• DC Shutdown Voltage: 0 V
• Max Input Voltage: 1,000 V
• Max DC Power: 0 W
• Max AC Power (5 Minutes): 100,000 W
• Surge AC Power (1 Second): 0 W
• Max DC Current: 144.75 A
• Max DC Inputs: 0 (Assuming no specific number is provided)
• DC Fuses: 12
• Connector: MC4
• Included Connectors: 12
• Euro Efficiency: 98%
• Transformer: None
• MPPT Quantity: 0
• Integrated DC Switch: Yes
• Warranty: 12 years

This inverter is designed for use in three-phase systems, and its features focus on easy installation, safety, and performance optimization. The provided specifications detail its weight, power ratings, voltage parameters, surge protection, and warranty information. It seems well-suited for solar power systems, given the mention of DC input and surge protection features.
