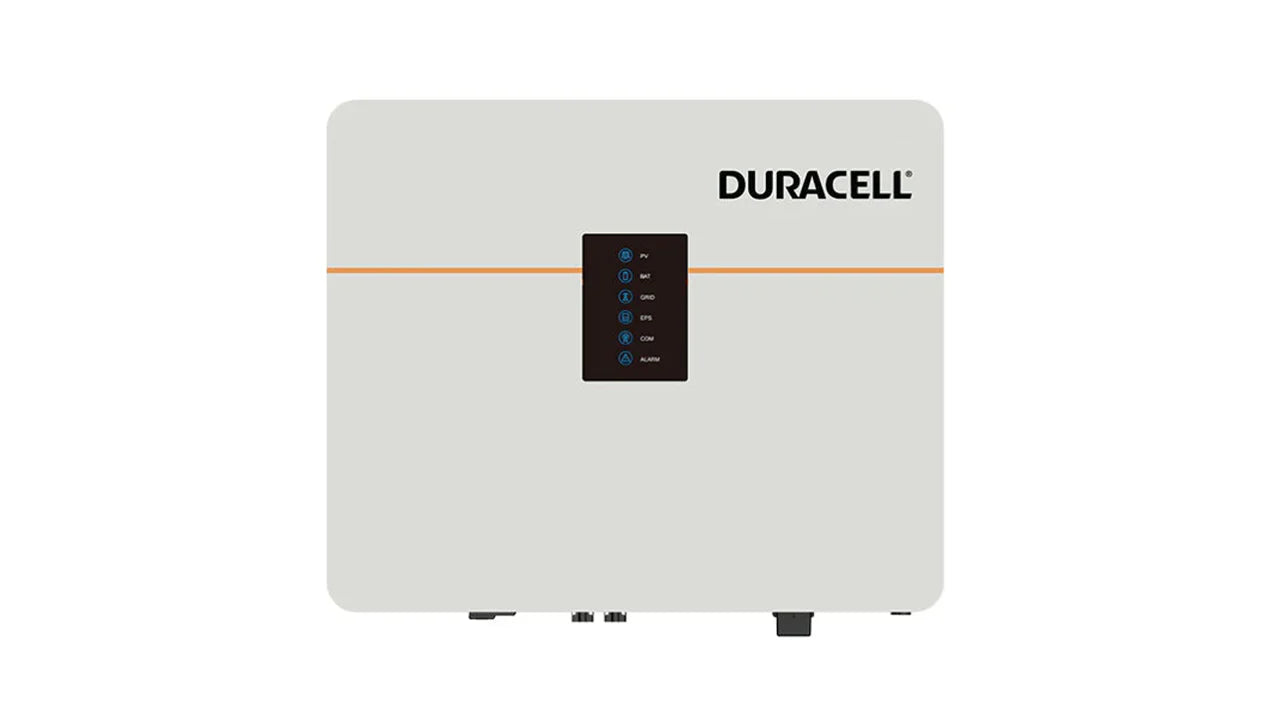

Duracell Energy Dura-i 4.6kW Hybrid Inverter

DURACELL-PD-DH1P-4.6-G1

• Duracell's Energy Dura-Dura-i 4.6kW Hybrid Inverter PD-DH1P-4.6-G1 optimizes solar energy utilization.
• Crafted with Duracell's renowned reliability and innovation.
• Features:
  • Hybrid and AC compatibility.
  • Up to 97.3% efficiency.
  • Integrated energy meter.
  • Modular design allows for up to 6 parallel inverters.
  • Compatible with Dura5 Battery.
  • Standard 5-year warranty, extendable to 10 years.
• Specs:
  • Weight: 25kg.
  • Max PV to AC efficiency: 97.3%.
  • Max BAT to AC efficiency: 94.30%.
  • Max PV Power: 9000 W.
  • Max PV Voltage: 550 V.
  • Max charge/discharge: 120A.
  • Max charge/discharge: 5000 W.
  • Number of MPPT: 2.
  • Strings per MPPT: 1.
  • AC output power: 4,600 VA.
  • Output current: 22 A.
  • Rated voltage: 230 V.
  • Nominal capacity: 100.
  • Dimensions: 585 x 485 x 175 (mm).
  • Installation: wall mount.
  • Operating temperature: -25°C~+60°C.
  • Display: LED.
  • Communication Ports: CAN / RS485

Datasheet For Duracell Inverter
