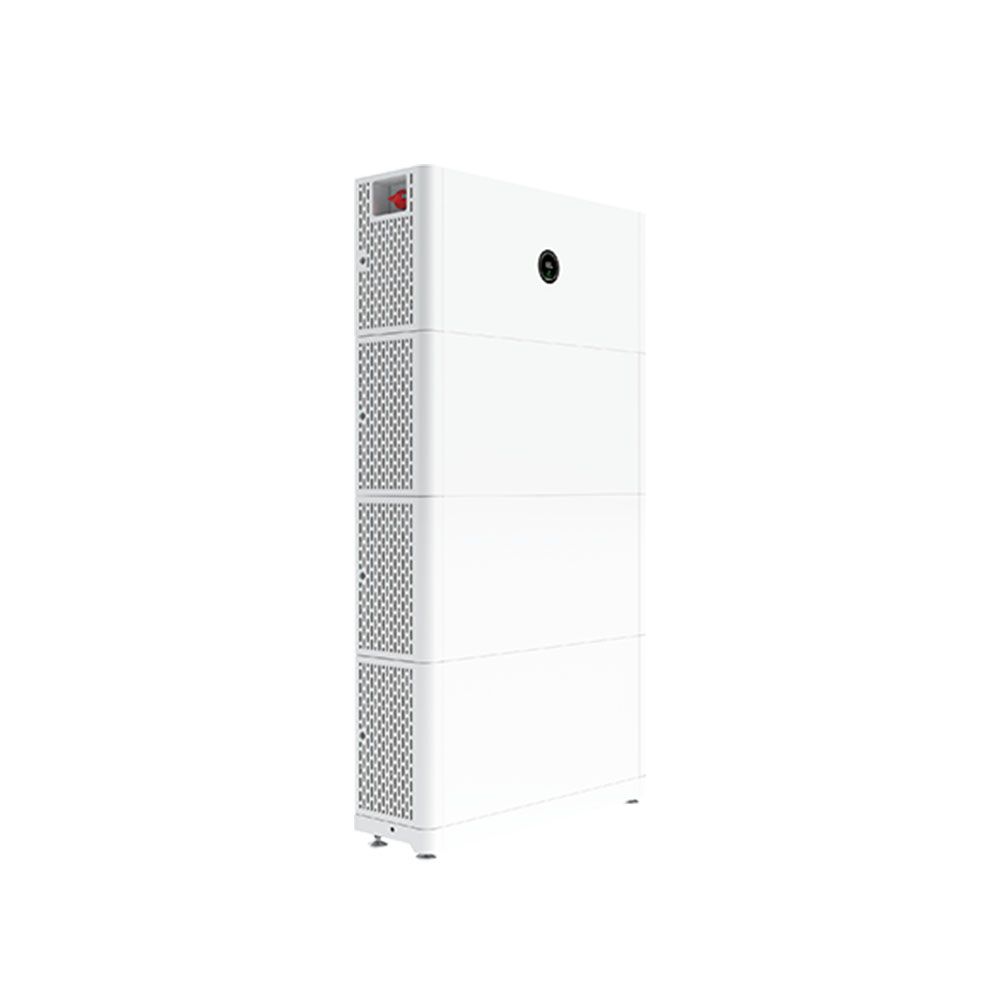

Growatt APX 5.0P-B1 5kWh HV Battery

Growatt APX 5.0P-B1 5kWh HV Battery

The APX battery system features a cobalt-free LiFePO4 chemistry and incorporates a four-level protection mechanism through the BMS, modular energy optimizer, fuse, and aerosol, ensuring superior safety, reliability, and longevity.

The system offers a flexible storage capacity ranging from 5kWh to 30kWh.

Battery Features:

• High safety of cobalt-free LiFePO4 battery
• Module energy capacity: 5kWh
• Nominal voltage: 385V
• Operating voltage range: 330-450V
• Module dimensions (W/H/D): 690/295/185mm
• Communication port: CAN/RS485
• IP66 protection
• Weight: 50kg
• 10-year warranty for the entire system.

• Brand: Growatt
• Product Weight: 50 kg
• Manufacturer Part Number: APX 5.0P-B1
• Battery Power: 5 kWh
• Voltage: High Voltage
• Nominal Voltage: 385 V
• Depth of Discharge: 92%
• Grid Connection: Grid and Off-Grid
• IP Rating: IP66
• Dimensions (WxHxD): 690 x 295 x 185 mm
• End User: Residential/Commercial
