Growatt ARK HV BMS (For SPH/SPA BH-UP Inverters)

Growatt ARK HV BMS (for SPH/SPA BH-UP inverters)

The Growatt HVC 60050-A1 serves as the Battery Management Unit (BMU) for the ARK HV Storage System, overseeing battery performance and ensuring safe operating temperatures.

Key Features:

• Compatibility: SPH/SPA BH-UP Inverters
• Maximum Current: 25A
• Dimensions (W/D/H): 650/260/185 mm
• Weight: 8.5 kg
• Protection Rating: IP65
• Communication Interface: CAN
• Monitoring Parameters: State of Charge (SOC), System Voltage, Current, Cell Voltage, Cell Temperature, PCB Temperature

Box Contents:

• Battery Management System (BMS)
• Installation Manuals and Warranty Card
• Plugs and Screws

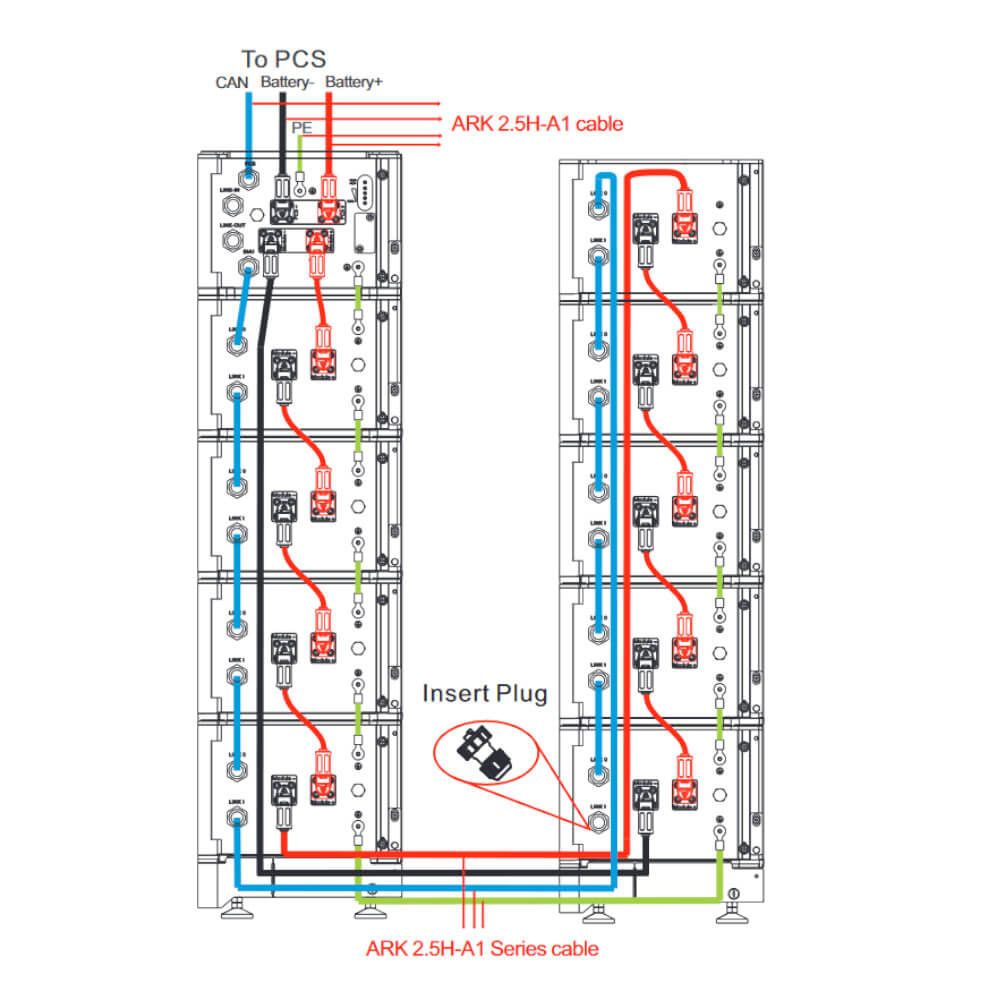

• Positive and Negative Parallel Power Lines
• Parallel Communication Line and Ground Wire.

• Brand: Growatt
• Product Weight (Kg): 5.5kg
• High/Low Voltage: High Voltage
