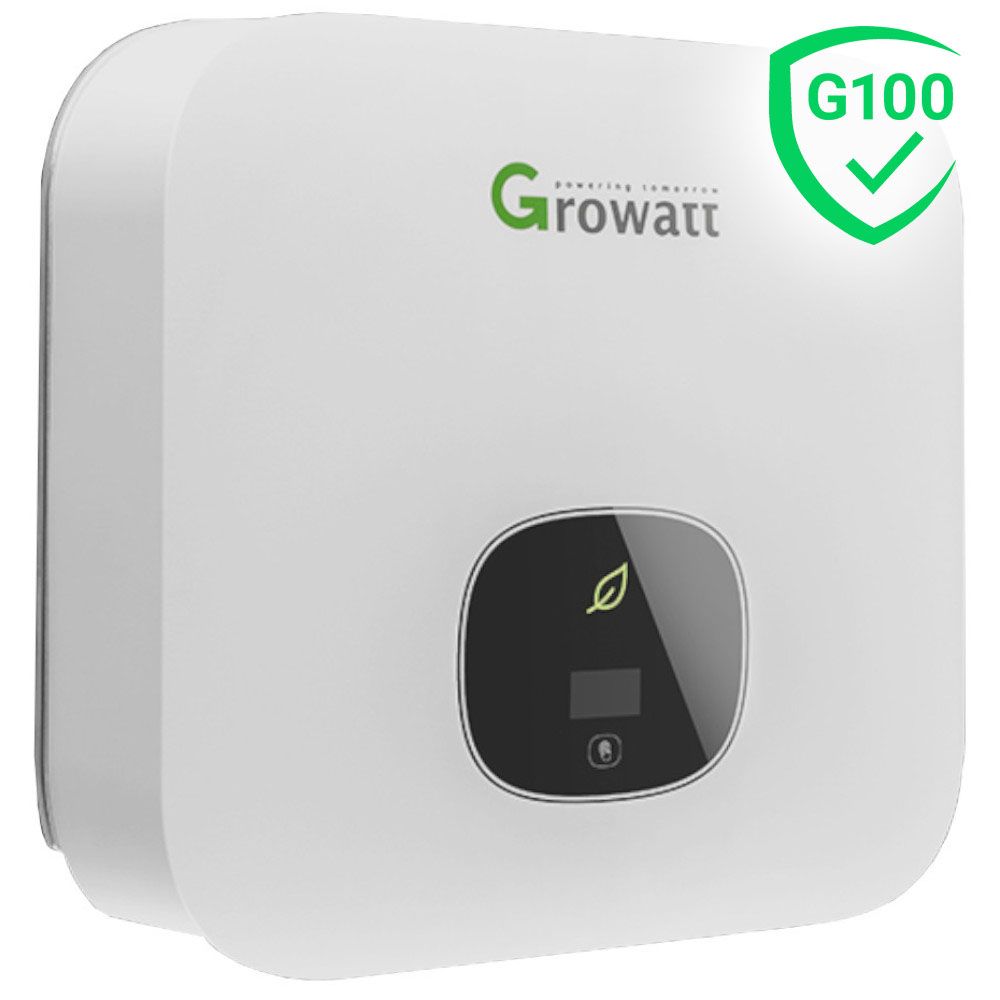

Growatt MIN 3600 TL-X 1Ph, 2 MPPTs Inverter, AFCI, With DC Isolator

Growatt MIN 3600 TL-X Inverter, AFCI, With DC Isolator

The Growatt MIN-X is a state-of-the-art smart inverter designed for rooftop solar systems. It features a compact design and delivers an impressive efficiency of up to 98.4%. The MIN-X series is equipped with two MPPT trackers, enabling connections to both the power grid and solar panels, resulting in significant savings on your electricity bill. Its affordability also ensures a quick return on investment.

In the UK, this model includes AFCI functionality as a standard feature.

IMPORTANT: Installers should avoid using CT for the anti-reflux function in MIN2500-6000TL-X inverters. Instead, they should use the Growatt SPM single-phase meter.

Growatt has clarified that while CT is mentioned in the user manual, they have identified issues with this method and no longer recommend it for grid limitation. The Growatt SPM is now the only recommended solution for this purpose.

KEY FEATURES:

• Built-in DC Isolator
• AFCI protection
• 98.4% maximum efficiency
• DC/AC ratio up to 1.4
• Dual MPP trackers
• Type II SPD on the DC side
• Supports export control
• Standard AFCI function
• Touch key and OLED display
• Export Limitation
• 10-year warranty

  Brand	Growatt
  Rated Power (W)	3,600
  Max DC Power (W)	5,040
  Inverter Phase	1
  Total No. of Strings	2
  No. of MPP Trackers	2
  MPPT Voltage Range / Rated Input Voltage (V)	80-550
  Start-up Input Voltage (V)	100
  Max. Input Voltage (V)	550
  Max. input current per MPPT	13.5A
  European Efficiency (%)	97.2
  Integrated DC Switch	Yes
  Inverter IP Rating	IP65
  Depth (mm)	160
  Height (mm)	350
  Width (mm)	375
  Product Weight (Kg)	10.8
  Grid Connection Standards (G98/G99/G100)	G98, G100-2
  Warranty Period	10 Years
