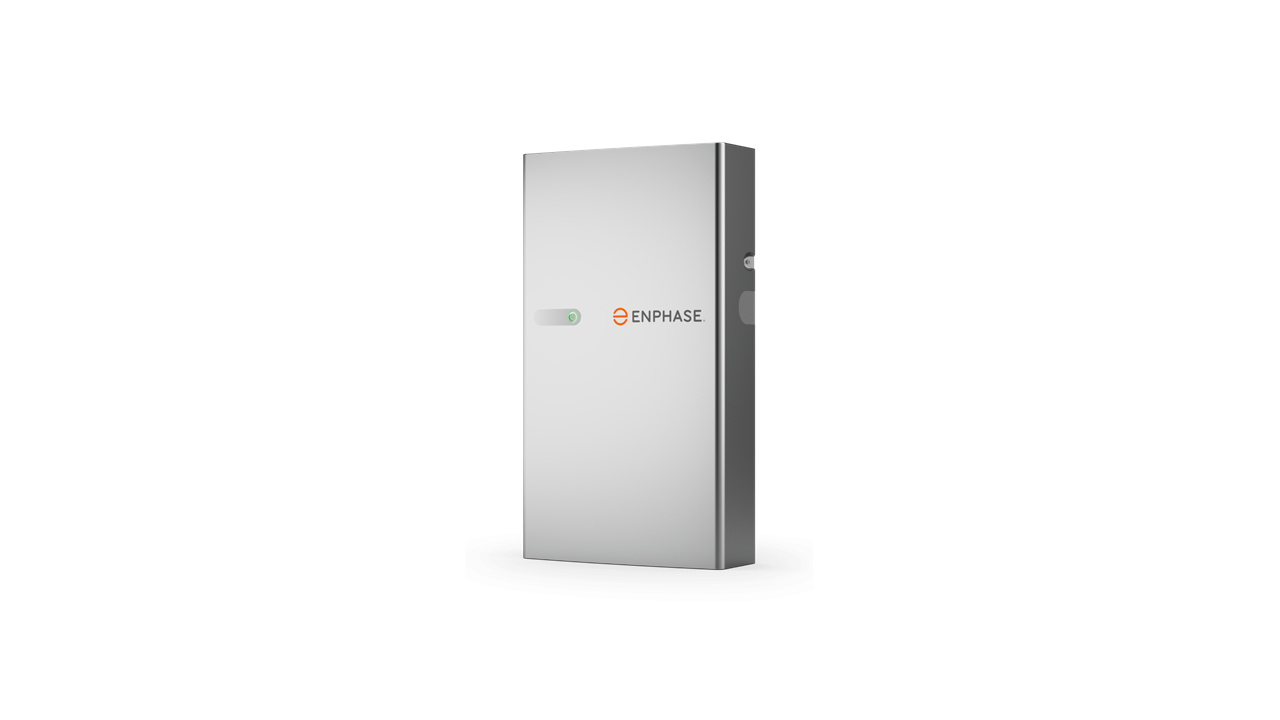

Enphase IQ All in One Battery 5P

The Enphase IQ Battery 5P is a comprehensive, AC-coupled storage system known for its powerful performance. Here are the key features:

• Energy Capacity:

  • Total usable energy capacity of 5.0 kWh.

• Microinverters:

  • Equipped with six embedded grid-forming microinverters.

• Continuous Power:

  • Provides 3.84 kW of continuous power.

• Peak Output Power:

  • Peak output power of 7.68 kW for 3 seconds.
  • Peak output power of 6.14 kW for 10 seconds.

• Integration:

  • Easily integrates with the Enphase Energy System.

• Backup Capability:

  • Can offer backup capability when installed with IQ System Controller 3/3G.

• Warranty:

  • Supported by a 15-year limited warranty.

• Modular Design:

  • Modular design allows installers to quickly design a system of the right size, meeting specific customer needs.

The Enphase IQ Battery 5P stands out as a versatile and powerful solution in the realm of energy storage. With its grid-forming microinverters, substantial continuous and peak power outputs, and seamless integration capabilities, it offers a reliable and efficient energy storage option. The 15-year limited warranty and modular design enhance its appeal, providing both longevity and flexibility in system configuration.

Enphase IQ8D-BAT AC Battery System Overview:

The Enphase IQ8D-BAT is a fully integrated AC battery system designed for residential energy storage. Here are its key features:

• Microinverters:

  • Six embedded IQ8D-BAT microinverters are fully integrated into the system.

• Warranty:

  • Covered by a 15-year limited warranty, providing peace of mind for an extended period.

• Field-Replaceable Components:

  • Components are field-replaceable, facilitating maintenance and ensuring system longevity.

• Battery Chemistry:

  • Utilizes stable lithium iron phosphate (LFP) chemistry for maximum safety and long-term reliability.

• Passive Cooling:

  • Cools passively with no moving parts or fans, reducing the risk of mechanical failures.

• Control Cabling:

  • Uses Control cabling for fast and consistent connections, streamlining the installation process.

• Installation:

  • Quick and easy installation, enhancing convenience for both installers and homeowners.

• Remote Upgrades:

  • Supports remote software and firmware upgrades, ensuring the system stays up-to-date with the latest features.

• Grid-Forming Capability:

  • Features grid-forming capability for backup operation, providing reliability during grid outages.

• Monitoring and Control:

  • Offers homeowners remote monitoring and control through the Enphase App.

• Operating Modes:

  • Supports backup, self-consumption, and time of use (TOU) modes, offering flexibility based on energy needs.

Battery Specifications:

• Weight: 66.3 kg
• Rated Power: 5,000 W
• Battery Type: Lithium Ion
• Nominal Energy: 5,000 Wh (5 kWh)
• Depth of Discharge: 95.00%
• Voltage: 76 V
• Continuous Discharge Rate (Normal Use): 3,824 W
• Maximum Discharge Rate (5 Minutes): 3,200 W
• Surge Discharge Rate (15 Seconds): 7,000 W
• Maximum Charge Rate (5 Minutes): 3,200 W

Key Information:

• Weight: The total weight of the battery.

• Rated Power: The power the battery is designed to deliver continuously.

• Battery Type: Lithium Ion, indicating the chemistry used in the battery.

• Nominal Energy: The total energy capacity of the battery when fully charged.

• Depth of Discharge: The percentage of the battery's capacity that can be used before needing recharging.

• Voltage: The electrical potential difference provided by the battery.

• Continuous Discharge Rate (Normal Use): The sustained rate at which the battery can deliver power during normal use.

• Maximum Discharge Rate (5 Minutes): The maximum power that the battery can discharge for up to 5 minutes.

• Surge Discharge Rate (15 Seconds): The maximum power the battery can provide for a short burst, up to 15 seconds.

• Maximum Charge Rate (5 Minutes): The maximum rate at which the battery can be charged for up to 5 minutes.

These specifications provide a comprehensive overview of the battery's capabilities, including its weight, power output, energy capacity, discharge rates, and charging capabilities.
