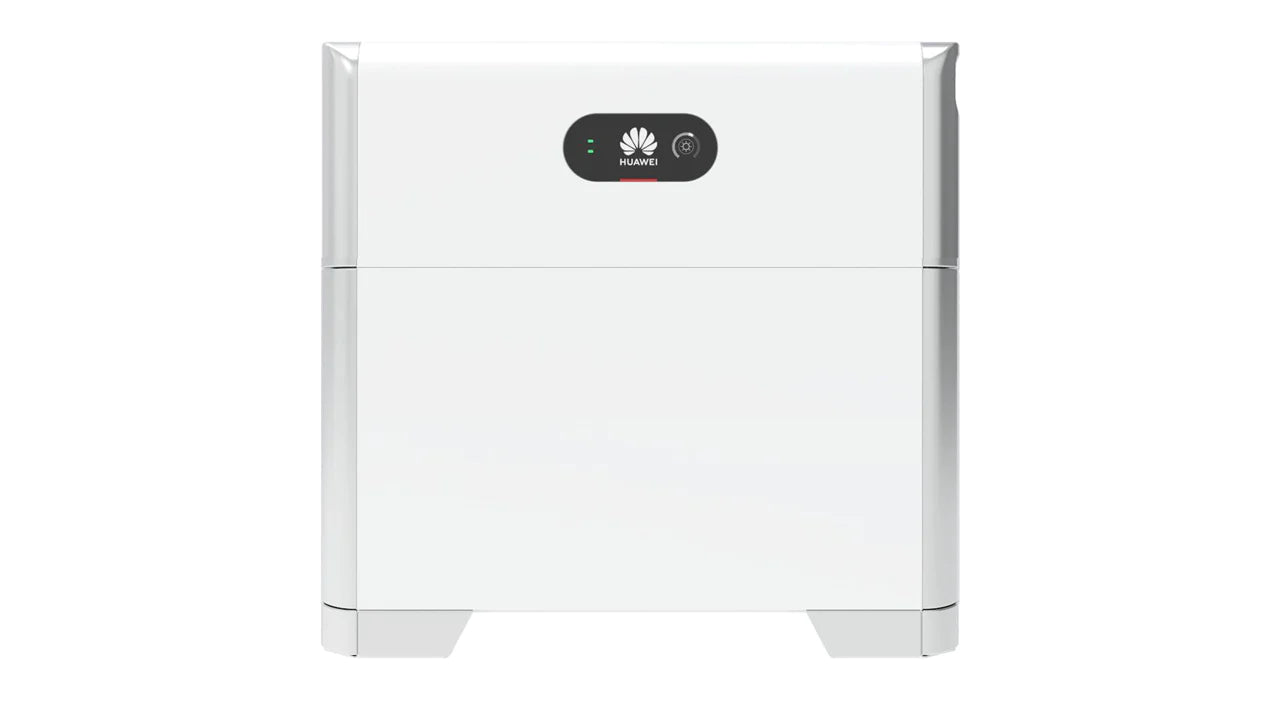

Huawei LUNA 5KWh battery module

Huawei LUNA 5KWh battery module

#1: SUN2000-LUNA-5KW-EO

1. Scalability: The battery module is flexible and can be easily scaled from 5KWh to 30KWh.

2. Energy Optimization: The pack offers 100% depth of discharge (DOD) for efficient energy utilization.

3. Easy Installation: The 50kg battery module is designed for easy installation.

4. Battery Type: It utilizes Lithium Iron Phosphate cells, ensuring safety and reliability.

5. Auto Detection and Fault Isolation: The battery module can be automatically detected and, in the event of a fault, isolates itself to maintain system safety.

6. Inverter Compatibility: Compatible with both single and 3-phase inverters.

7. Voltage and Output: The nominal voltage of the battery is 600VDC, with a maximum output of 2500W per module.

8. Warranty: Comes with a 10-year warranty.

9. Communication: Utilizes RS485 BMS communication for monitoring and control.

10. Environmental Protection: The module is rated IP66 for protection against dust and water.

11. Specifications:

• Weight: 55 kg
• Nominal Energy: 5000 Wh
• Depth of Discharge: 100.00%
• Continuous Discharge Rate (Normal Use): 2500 W
• Maximum Discharge Rate (5 Minutes): 2500 W
• Surge Discharge Rate (15 Seconds): 3500 W
• Maximum Charge Rate (5 Minutes): 2500 W

12. Supplier Part No: 1074643

This battery module appears to be a robust and versatile solution for energy storage, suitable for various applications due to its scalability and compatibility features.
