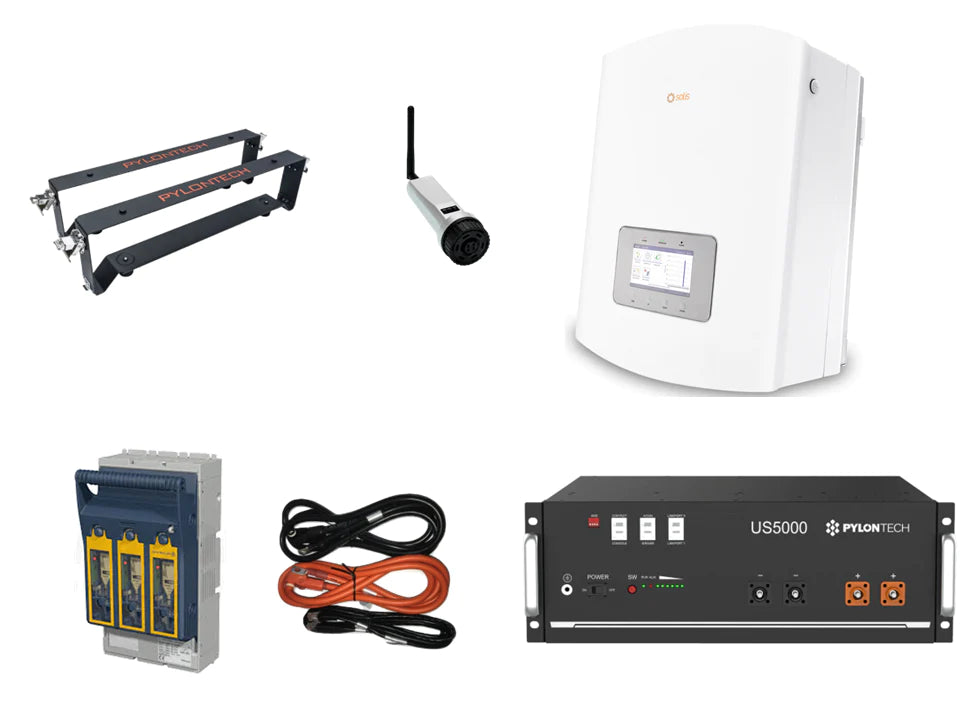

Complete Kit: Pylontech US5000 4.8kWh + Solis 3.6kW Hybrid Inverter

The Pylontech US5000 is a next-generation 48V battery with a modular design, higher usable capacity (4,560Wh), and parallel capability of up to 16 units, allowing large-scale installations of up to 72.96kWh without the need for an LV Hub. It features an Intelligent BMS, 95% Depth of Discharge, RS485 and CAN compatibility, and comes with a 5-year extendable warranty. Known for long cycle life and superior performance, it is also compatible with tier 1 inverter brands.

Pylontech US5000 Battery:

• Supplier Part No: US5000
• Weight: 38 kg
• Battery Type: Lithium Ion
• Nominal Energy: 4800 Wh
• Depth of Discharge: 95.00%
• Voltage: 48 V
• Continuous Discharge Rate (Normal Use): 2400 W
• Maximum Discharge Rate (5 Minutes): 4800 W
• Surge Discharge Rate (15 Seconds): 5808 W
• Maximum Charge Rate (5 Minutes): 4800 W

Solis 3.6kW Hybrid Energy Storage Inverter:

• Product Features:
  • Fanless design IP65
  • High charge and discharge efficiency
  • Multiple work modes for maximum self-consumption
  • Intelligent BMS function
  • 24-hour real-time intelligent energy management
  • Remote control and upgrade capability

Additional Information:

• The Solis 5G Hybrid inverter range provides support for crucial loads during load shedding and optimizes energy consumption during peak demands.

This combination of the Pylontech US5000 battery and Solis 3.6kW Hybrid Inverter offers a reliable and efficient energy storage solution with intelligent features for optimal performance and management.
