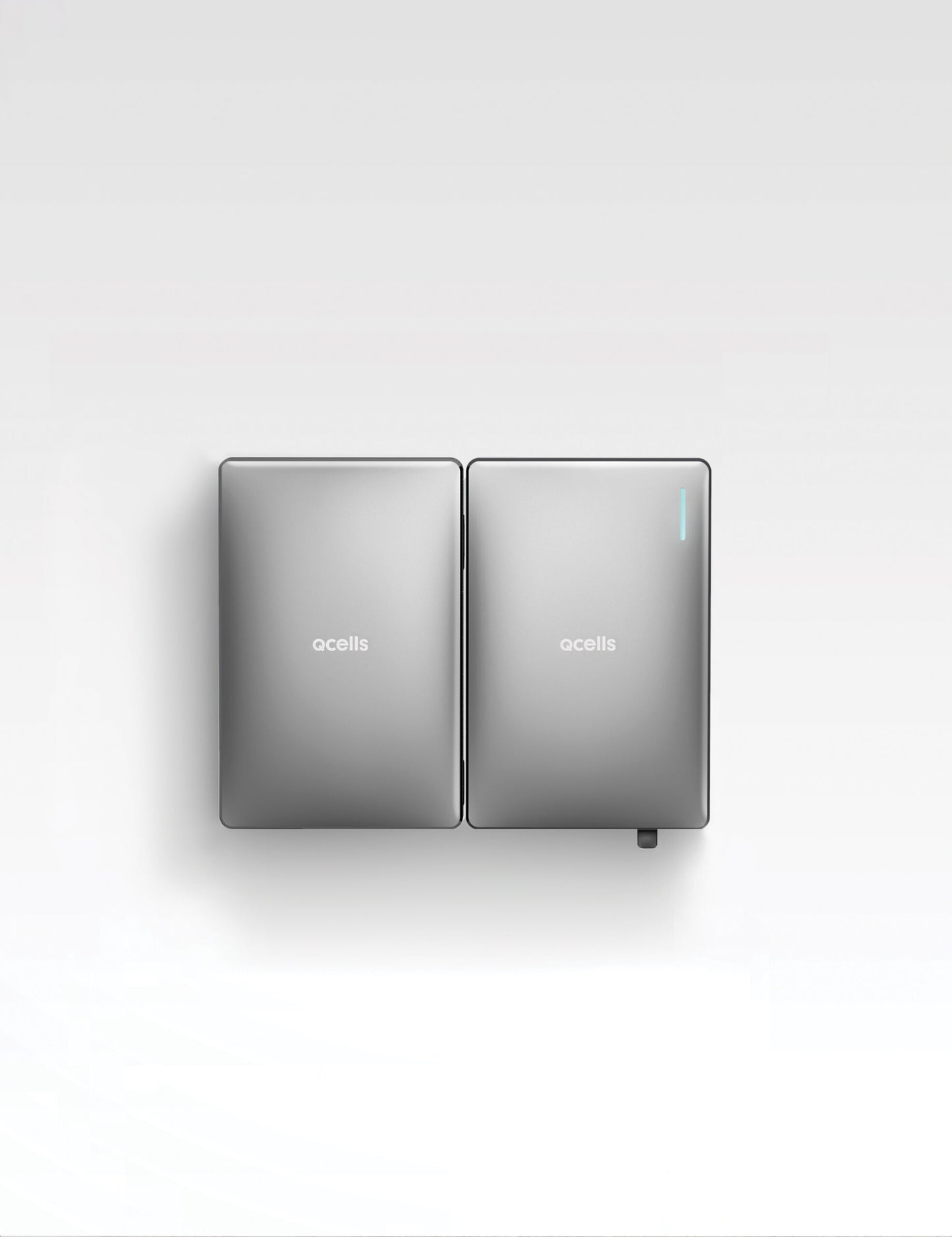

Qcell Q.SAVE – 6.8kwh battery and Q.VOLT A4 – 3.68kw or 5kw Ac coupled Inverter

"QCELL BUNDLE

Featuring the Q.SAVE – 6.8kWh Battery Unit (DC) SSPD-00005:

• IP65 rated for durability
• Employs Lithium-ion NCA Battery Technology by Samsung SDI
• Battery Energy Capacity: 6.8 / 13.7 / 20.5 kWh (6.86 kWh per pack)
• Usable Battery Energy: 6.5 / 13.0 / 19.5 kWh (6.51 kWh per pack)
• Maximum Charge Power / Max. Discharge Power:
  • 3.8 / 4.5 kW (3.8 / 4.5 kW for DE, 3.8 / 3.68 kW for G98) @ 1 Battery Pack
  • 5.0 / 5.0 kW (5.0 / 4.6 kW for DE, 5.0 / 3.68 kW for G98) @ 2, 3 Battery Pack
• Utilizes Non-isolated Converter Technology
• Rated Battery Voltage / Battery Voltage Range: 202.8 / 168.0 to 228.2 VDC
• Maximum Charge / Discharge Current: 16.9 / 20 A (for each Q.SAVE unit)
• Depth of Discharge (DoD): 95%
• Comes with a 15-year warranty

Also featuring the Q.VOLT A4 – 3.68kW or 5kW AC coupled Inverter:

• Max. Apparent Power / Rated Output Power: 5 kVA / 5 kW (4.6 for DE, 3.68 for G98)
• Nominal Voltage / Range: 230 / 184 to 264 (230 / 184 to 262 for G98)
• Nominal Grid Frequency / Range: 50, 60 / −5 Hz to +5 Hz
• Feed-in Phase / Connection Phase: Single / Single
• Nominal Current / Max. Current / Max. Over-Current Protection: 21.7 / 25 / 30 A (20 / 25 / 30 for DE, 16 / 20 / 30 for G98)
• Power Factor Range: 0.95 lagging to 0.95 leading
• Total Harmonic Distortion: ≤ 5%
