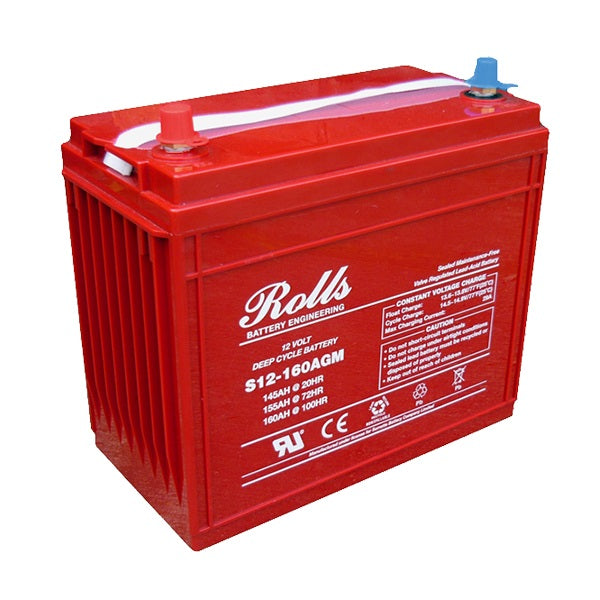

Rolls Series 5 S12-160 AGM Deep Cycle Battery

Deep cycle refers to applications that typically discharge 60-80% of the battery capacity. The Rolls S Series S12-160 AGM Deep Cycle AGM battery boasts thick plates with a high-density active material, facilitating the storage of reserve energy deep within the battery plates for gradual release during discharge. The Rolls AGM range is sealed, non-hazardous, and entirely maintenance-free, making it an ideal choice for customers seeking a long, reliable service life without maintenance hassles.

Rolls has engineered a Deep Cycle VRLA battery with high reserve capacity, extended cycle life, and low internal resistance, while achieving superior cranking performance. Rolls AGM batteries are well-suited for demanding renewable applications. They are designed and constructed differently from standard batteries, utilizing more lead, heavier plates, and proprietary materials to deliver increased power and capacity over multiple life cycles.

Features:

• Sealed Construction – Maintenance-Free
• High-Density Plate – High Capacity
• Heavy-Duty Thick Grids – Authentic Deep Cycle Construction
• ABS Case and Cover – Resistant to Shock and Vibration
• Low Internal Resistance – Rapid Recharge
• Microporous Glass Mat Separator – Enhanced Electrolyte Retention
• Available in All Standard Sizes to Fulfill Various Application Requirements
• Product Warranty – 3 Years

Specifications:

• Part Number: S12-160AGM
• Battery Range: Rolls S Series
• Voltage: 12V
• Ah Capacity (C20): 145Ah
• CCA @ 32°F: 975
• CCA @ 0°F: 820
• Dimensions (mm) LxWxH: 341 x 173 x 309
• Weight (Kg): 44.0
• Terminal Type: M8-TP08

 S12-160 Data Sheet
