Sherpa BASE 2.0-Extra Battery
Sherpa BASE 2.0-Extra Battery
Couldn't load pickup availability

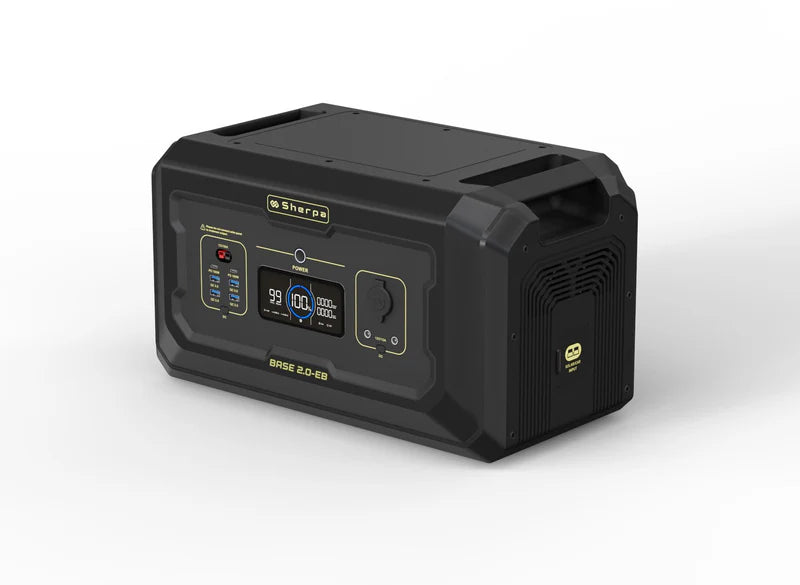

The BASE 2.0-EB is a portable, user-friendly, and lightweight extra battery designed to enhance your energy storage capabilities. It supports significant solar and hybrid renewable inputs, allowing you to charge your devices and provide clean, efficient power. Built for off-grid living and home backup, the BASE 2.0-EB features an expandable capacity that can be increased by linking up to 15 additional battery units.

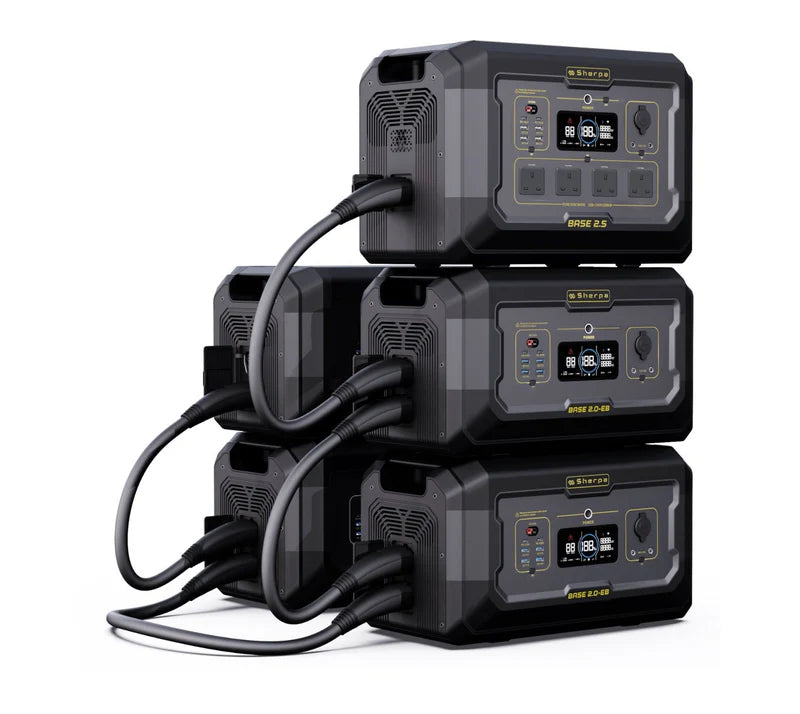

This portable battery uses a high-quality, automotive-grade lithium iron phosphate (LiFePO4) battery, offering up to 3,500 cycles before its capacity drops to 80%. With an initial capacity of 2,048Wh—expandable up to an impressive 32,768Wh when connected to the BASE 2.5—the system provides a substantial energy reserve for long periods of uninterrupted power. The integrated power management system allows for simultaneous charging from multiple renewable sources, such as solar and micro wind, while powering connected devices. The Battery Management System (BMS) includes multiple safety features to protect against overheating, overloads, and short circuits, ensuring both the battery and your devices remain safe. It also limits excessive power draw, overcharge, and deep discharge to extend battery life. With temperature control and short-circuit protection, you can confidently use this battery knowing that your safety is prioritized.

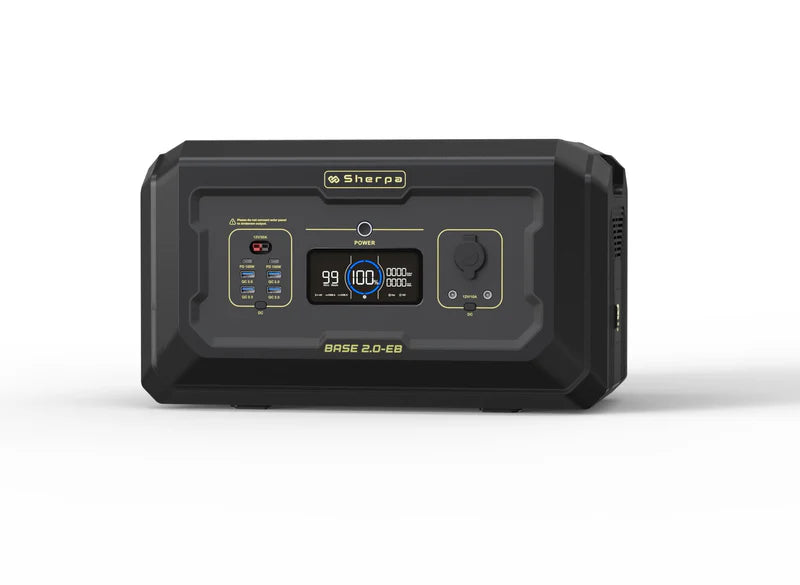

The BASE 2.0-EB features 10 power output ports, enabling you to charge and power multiple DC devices simultaneously. These include four USB-A ports, two USB-C ports, two DC 5525 ports, one auxiliary car port, and one Anderson output, making it easy to power smartphones, tablets, laptops, car accessories, outdoor electronics, and other DC-powered devices.
Ready for solar and hybrid renewable charging, the BASE 2.0-EB can reach a full charge in approximately 1 hour. The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input, allowing you to go completely off-grid and harness renewable energy. You can also trickle charge the battery via a vehicle's 12V socket while on the move.
Included items:
- 1 x BASE 2.0-EB
- 1 x Link Cable
- User Manual
| Battery Info | |
|---|---|
| Capacity: | 2048 Wh (Depth Of Discharge 85%) |
| Chemistry: | LiFePO₄ (Lithium Iron Phosphate) |
| Life Cycles: | 3,500+ Cycles to 80% Original Capacity |
| Shelf-life: | Discharge the battery to 30% every three months and recharge it to 60% |
| Management System: | MPPT Controller, BMS |
| Protection: | Over-voltage, Low-voltage, Overheat, Overload |
| Discharging Temperature: | -20°C~45°C/-4°F~113°F |
| Charging Temperature: | 0°C~45°C/32°F~113°F |
| DC Output | |
| Outlets: | USB-A Port: 4 x (5V, 9V, 12V, Max 18W) Shared USB-C Port: 2 x (5V, 9V, 12V, 20V, Max 18W and 100W) Shared DC 5525 Output Port: 2 x (12V-5A) DC Anderson Output Port: 1 x DC 12V-30A Aux Car Port: 1 x DC 12V-10A |
| AC Input | |
| AC Input Power: | 700W Max when charging via the BASE 2.5 host |
| DC Input | |
| DC Input Power: | 2100W Max |

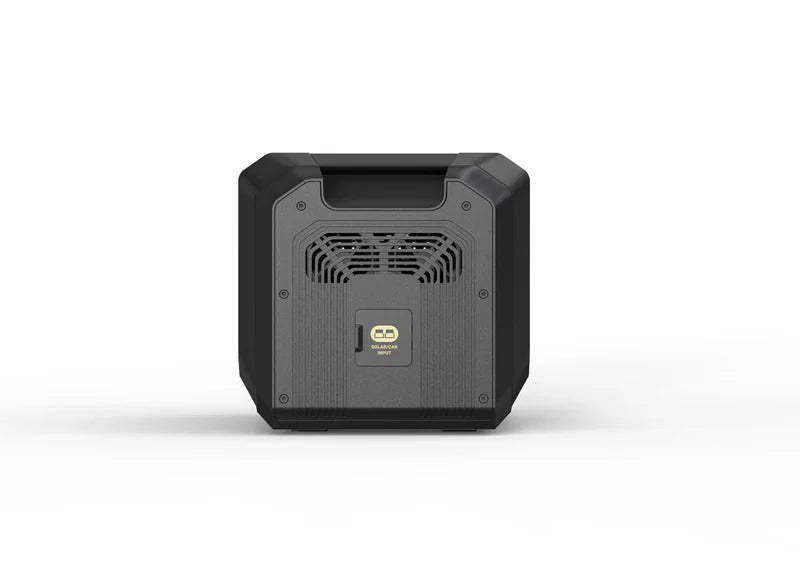

| DC Inlet: | DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max) |
| Recharge Times (0-100%) | |
| AC Input: | 3.5 hours when linked to BASE 2.5 host |
| Solar / DC Input: | 1 hour |
| Vehicle Charger (fast): | 4.5 hours |
| Vehicle Charger (slow): | 20 hours |
| General | |
| IP Rating: | 21 |
| APP Compatible: | When linked to BASE 2.5 host |
| Expandable Capacity: | Yes (up to 15 x Sherpa BASE 2.0-EB link with the BASE 2.5) |
| Warranty: | 5-year Standard Warranty |
| Dimensions & Weight | |
| Length(L): | 460mm |
| Width(W): | 270mm |
| Height(H): | 265mm |
| Weight: | 19Kg |
