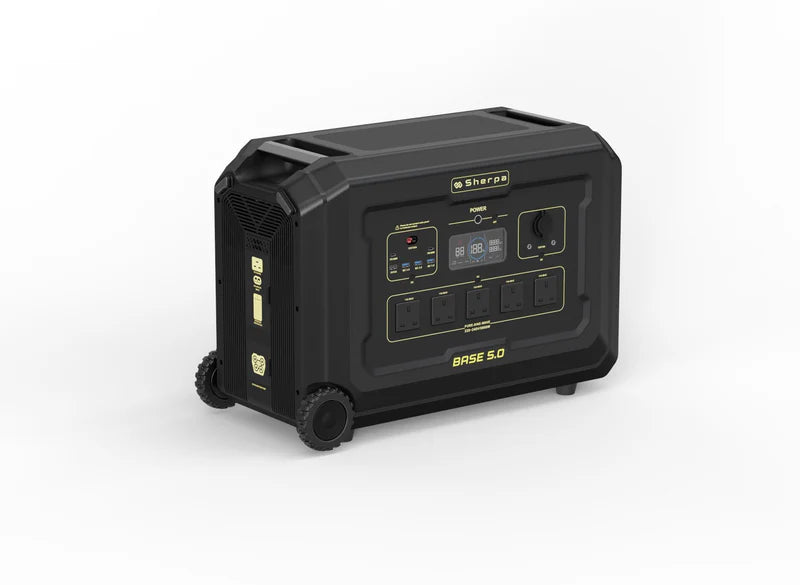

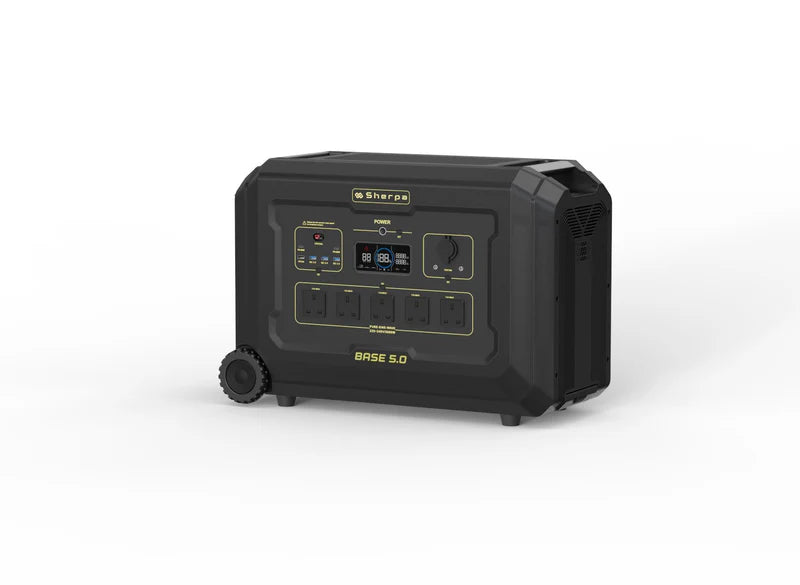

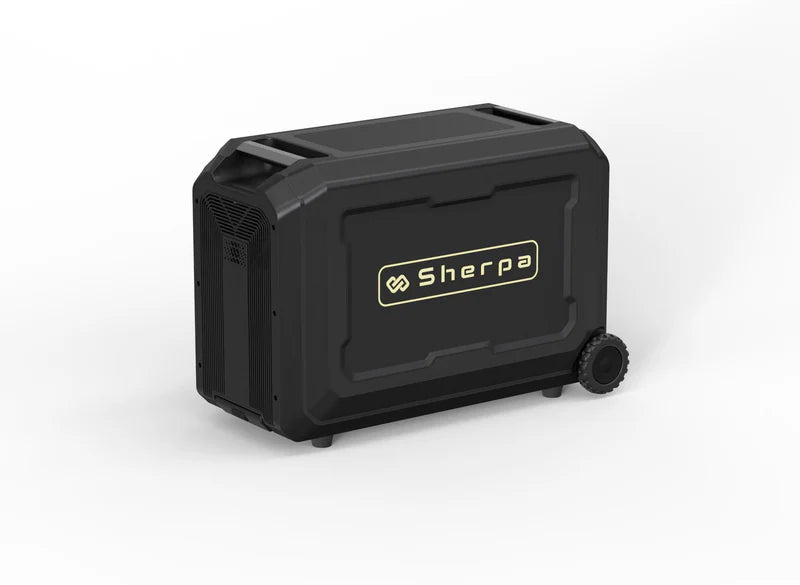

Sherpa BASE 5.0

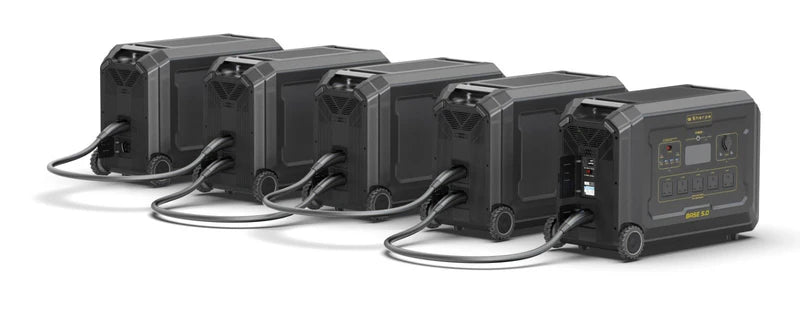

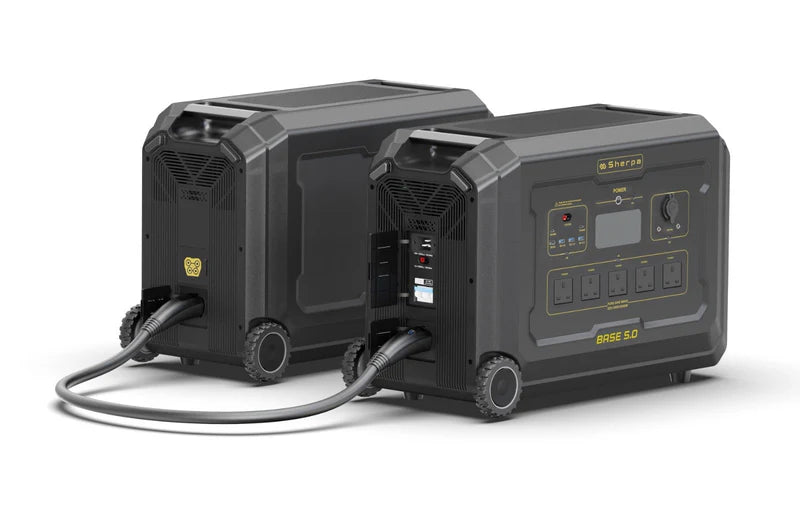

The BASE 5.0 is a high-performance, user-friendly portable power station designed to redefine power accessibility. Capable of accepting substantial solar and hybrid renewable inputs, it ensures your essential appliances receive clean and efficient power while staying charged. Built for both off-grid adventures and home backup, the BASE 5.0 features scalable capacity, with an easy link-up system that allows you to connect up to 15 additional battery units for extensive energy storage.

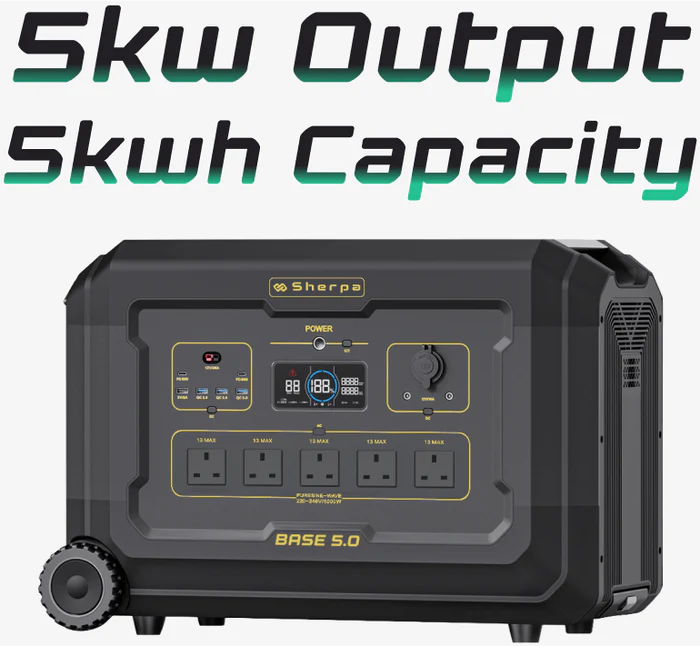

The BASE 5.0 is powered by a high-quality, automotive-grade lithium iron phosphate (LiFePO4) battery, which offers up to 3,500 cycles before its capacity decreases to 80%. With an initial capacity of 5,040Wh, expandable to a whopping 80,640Wh by linking fifteen BASE 5.0-EB extra batteries, it provides a substantial energy reserve for prolonged periods of uninterrupted power. The integrated power management system allows simultaneous charging from multiple sources while powering your connected devices. Prioritizing safety, the BASE 5.0 Battery Management System (BMS) includes multiple protection features against overheating, overload, and short circuits, helping to extend the battery's lifespan. The unit also includes a 5kW pure sine wave inverter, which can power appliances and devices even in the absence of mains electricity. Its Uninterruptible Power Supply (UPS) function ensures that your appliances automatically switch from grid to battery power within 8-20 milliseconds during a power outage.

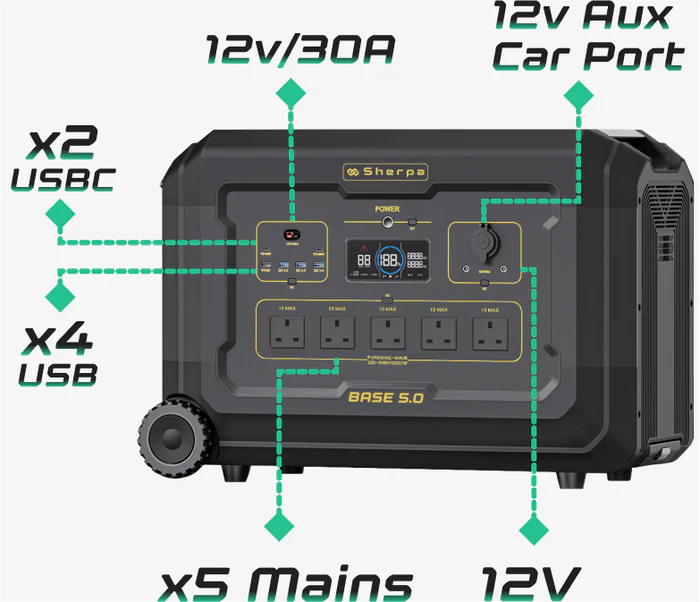

With 15 output ports, the BASE 5.0 allows you to charge and power multiple devices at once:

• AC OUTPUT: Five AC sockets (220V-240V/50Hz) for running high-power appliances.
• DC OUTPUT: Several smart-charge ports that adjust to your devices' power needs, including four USB-A ports, two USB-C ports, two DC 5525 ports, one Aux car port, and one Anderson output, enabling you to power smartphones, tablets, cameras, laptops, car accessories, and other DC-powered devices.

The BASE 5.0 also features advanced charging options with three methods for quick recharging:

• AC Charging: Fully charges from 0% to 100% in approximately 2.3 hours using a standard wall outlet.
• Solar and Hybrid Renewable Charging: Reaches full charge in about 2.4 hours using compatible solar panels (sold separately), with a high-efficiency MPPT charge controller that converts solar, wind (DC), or hydroelectric (DC) input for complete off-grid power.
• Onboard Charging: Trickle charges through your vehicle's 12V socket while on the move.

Included items:

• 1 x BASE 5.0
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (LSMC4-Anderson)
• 1 x Anderson to Anderson Cable
• 1 x Anderson to 7909 Cable
• 1 x Anderson to Car Charge Cable
