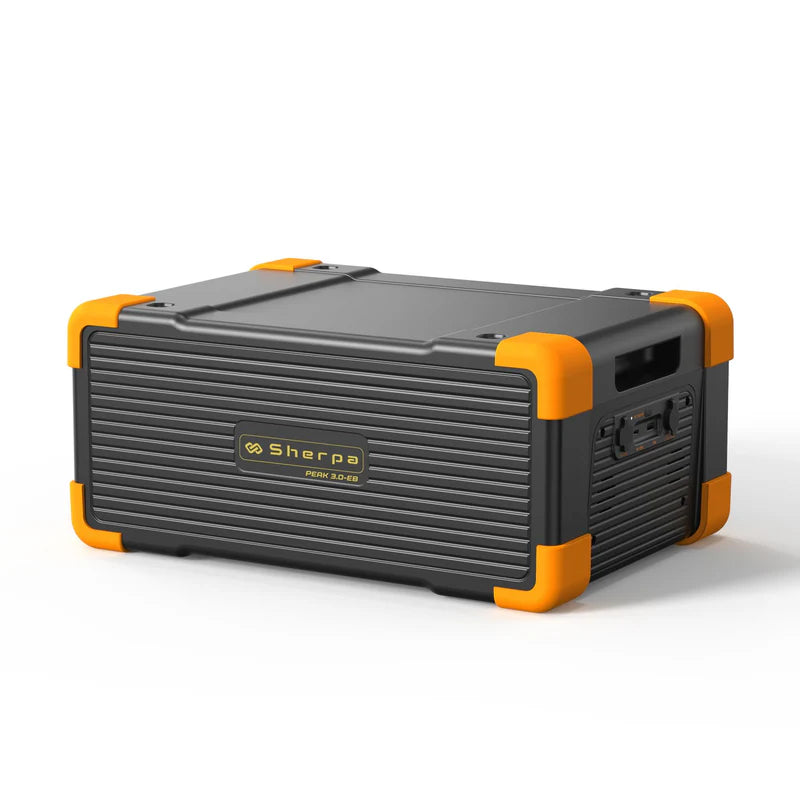

Sherpa PEAK 3.0-Extra Battery

The PEAK 3.0-EB is a user-friendly, lightweight Smart Extra Battery designed to expand your system's energy storage capacity. Capable of accepting solar and hybrid renewable inputs, it can be charged directly to provide clean, efficient power to your devices. Engineered for scalable capacity, the PEAK 3.0-EB is ideal for use in commercial and leisure vehicles or as a temporary home backup. Its easy link-up system allows you to connect up to two additional batteries and a host unit, significantly increasing energy storage.

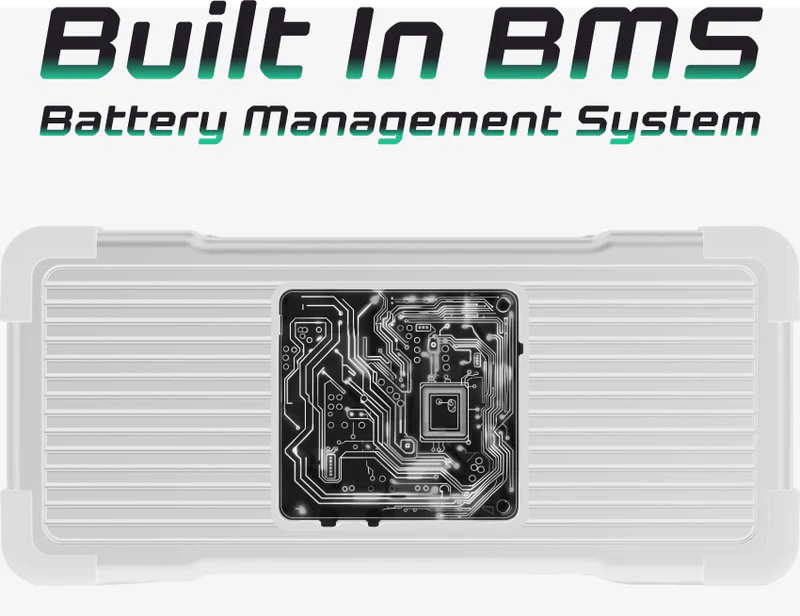

The PEAK 3.0-EB Portable Extra Battery is equipped with a high-quality, automotive-grade lithium iron phosphate (LiFePO4) battery, capable of 3,500 cycles before its original capacity drops to 80%. With a 3,072Wh capacity, expandable up to 7,680Wh when linked to the PEAK 2.2, the system offers substantial energy reserves for prolonged periods of uninterrupted power. Its built-in power management system allows simultaneous charging from multiple renewable sources, such as micro wind and solar, while powering connected devices. The PEAK 3.0-EB also features a Battery Management System (BMS) with multiple built-in protection features to safeguard both the Extra Battery and your connected devices from overheating, overloading, and short-circuiting. These features prevent excessive power draw, overcharging, and deep discharge, ensuring the longevity of the battery. With short-circuit protection and temperature control, you can use the PEAK 3.0-EB with confidence, knowing that your safety is prioritized.

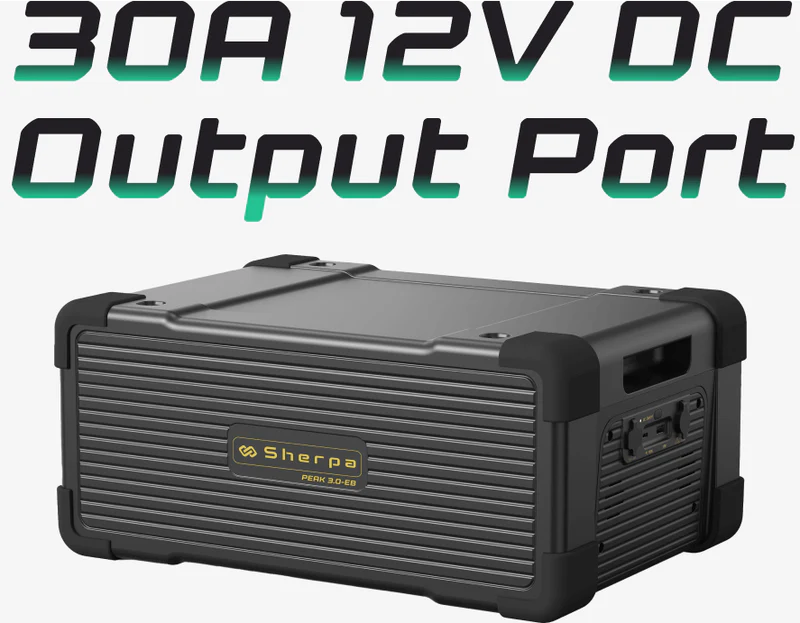

Featuring three power output ports, the PEAK 3.0-EB allows you to charge and power multiple DC devices simultaneously:

• DC Output: Includes multiple smart-charge ports that automatically adjust to the power needs of your devices: 1 USB-A port, 1 USB-C port, and 1 XT60 output, enabling you to charge and power smartphones, tablets, laptops, car accessories, outdoor electronics, and other DC-powered devices.

The PEAK 3.0-EB offers advanced charging capabilities with flexible options for recharging the unit:

• AC Charging: Approximately 4 hours to reach 100% charge when connected to a PEAK 2.2 host unit plugged into mains power.
• Solar and Hybrid Renewable Charging: Approximately 8 hours to charge from 0% to 100%. The high-efficiency MPPT charge controller optimizes the conversion of solar, wind (DC), or hydroelectric (DC) input, allowing for a completely off-grid experience.
• Onboard Charging: Trickle charge through your vehicle's 12V socket while on the move.

Included items:

• 1 x PEAK 3.0-EB
• 1 x Output Adapter from XT60 to Aux and 5525 Port
• 1 x MC4 Solar Charging Cable (LSMC4-5GX16)
• 1 x MJ32 Cascade Cable
• 1 x 12V Alligator Clips
• 6 x Double Spare Corner Protectors
• 1 x Adapter cable 5521 to GX16MF-5 Connector
• 1 x Adapter Cable Anderson to GX16MF-5 Connector
• 1 x Car Charge Cable to GX16MF-5 Connector
• 6 x Metal Fixing Plates
• 6 x Screws
• 8 x Spare Corner Protectors
• 1 x User Manual

Sherpa PEAK 3.0-Extra Battery Manual
