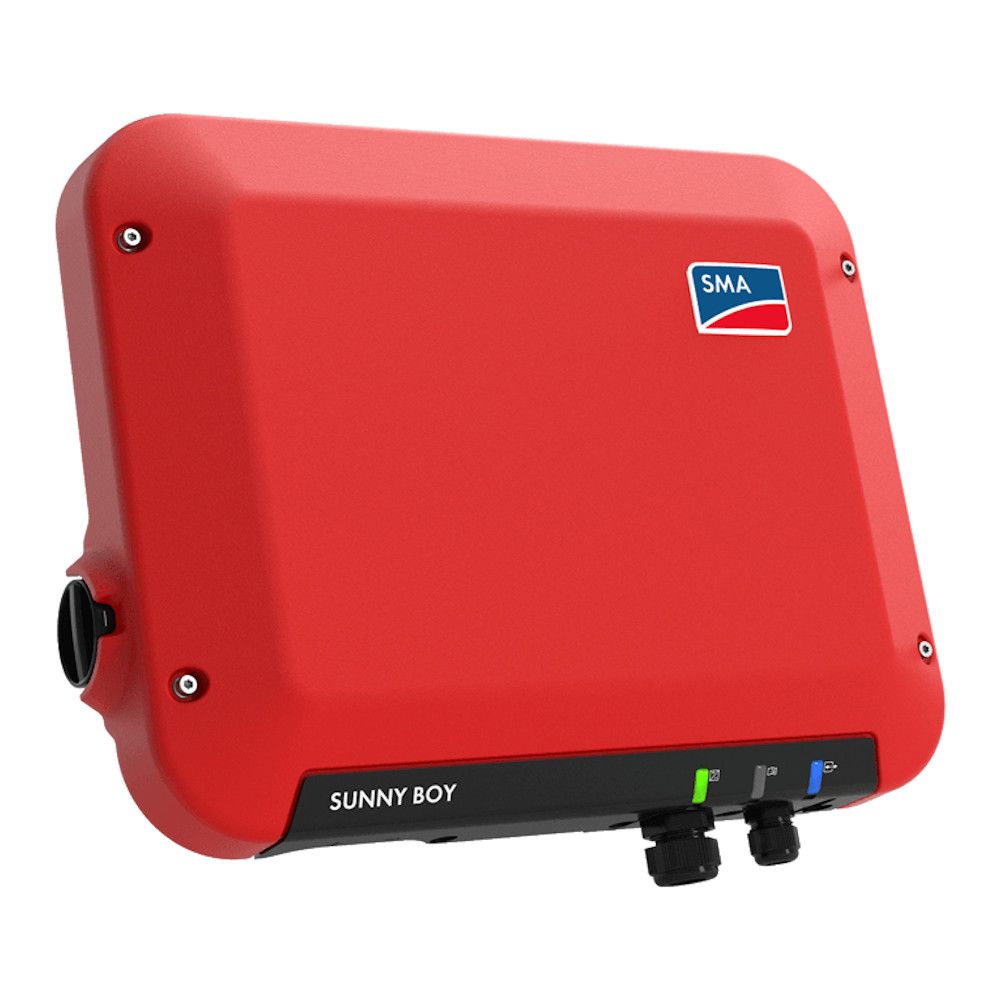

SMA Sunny Boy 2.5-1VL-40 Inverter

SMA Sunny Boy 2.5 – Single Phase

These inverters are an ideal choice for customers with small PV systems, offering a wide range of benefits. With an input voltage range of 80V to 600V, along with their versatility, compatibility with various modules, and lightweight design for easy installation, they provide an optimal solution.

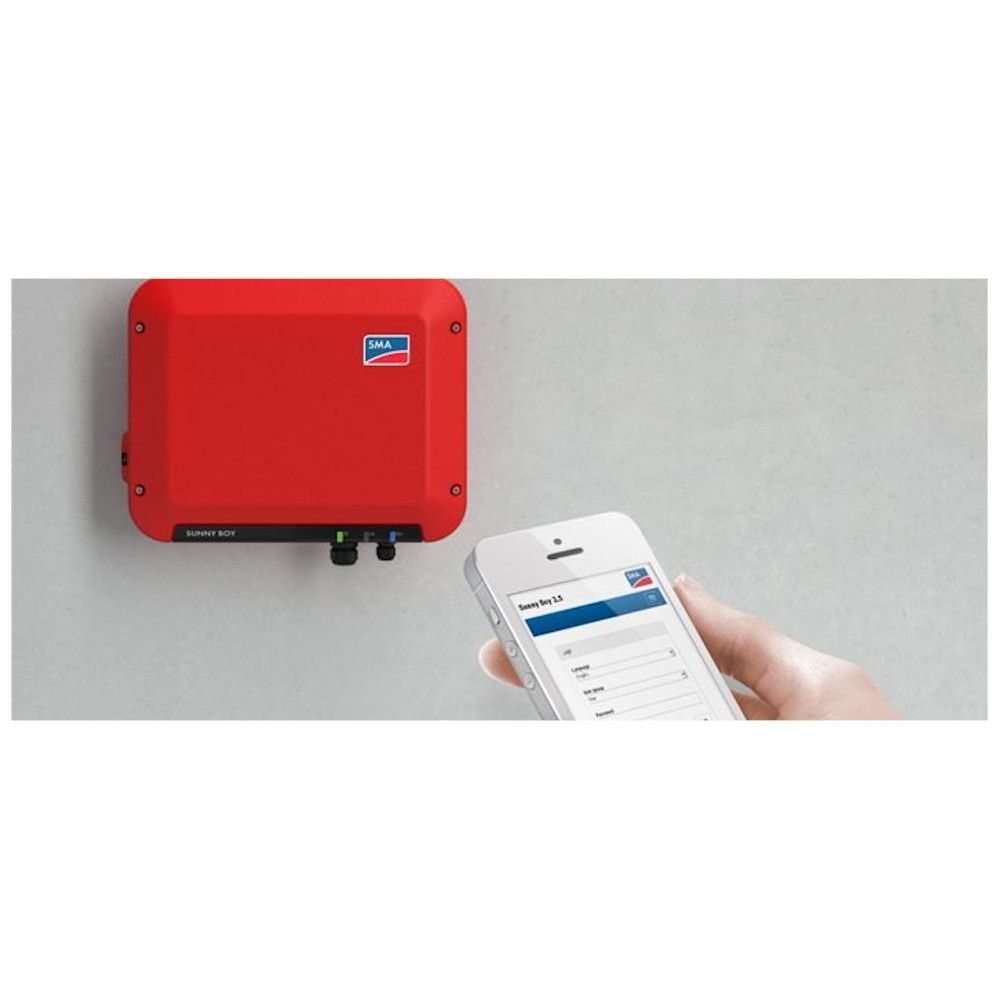

Following a seamless setup process through the integrated web interface, the Sunny Boy 1.5 / 2.0 / 2.5 is perfect for local monitoring via its own wireless home network or online monitoring through Sunny Portal or Sunny Places. This ensures convenience for both PV system operators and installers. Additionally, SMA's automatic inverter monitoring analyzes operation, identifies irregularities, and reduces downtime.

Key Features:

• Compact design with a weight of only 9 kg allows for effortless one-person installation.
• Plug-and-play installation makes it user-friendly, with free online monitoring via Sunny Places and automated service through SMA Smart Connected.
• System data monitoring is accessible on smartphones and tablets.
• Maximizes yields by utilizing surplus energy through dynamic active power limitation.
• Offers a wide input voltage range.
• Allows for intelligent energy management and storage solutions to be integrated at any time.
• Compatible with TS4-R components for module optimization.
• Comes with an integrated DC switch and IP65 protection rating.
• Includes a basic 5-year warranty.

• Brand: SMA
• Rated Power: 2,500W
• Max DC Power: 2,650W
• Inverter Phase: Single
• Total Number of Strings: 1
• Number of MPP Trackers: 1
• MPPT Voltage Range / Rated Input Voltage: 260-500V
• Start-up Input Voltage: 80V
• Max Input Voltage: 600V
• European Efficiency: 96.7%
• Integrated DC Switch: Yes
• Depth: 122mm
• Height: 357mm
• Width: 460mm
• Product Weight: 9.2kg
• Grid Connection Standards: G98
• Warranty Period: 5 Years

SMA Sunny Boy 1.5-2.5 Data Sheet

SMA Sunny Boy 1.5-2.5 Installation Guide

SMA Sunny Boy 1.5-2.5 Quick Reference Guide

SMA Sunny Boy 1.5-2.5 G98 Certificate of Compliance

SMA Sunny Boy 1.5-2.5 G99 Certificate of Compliance

SMA Limited Factory Warranty Home + Business
