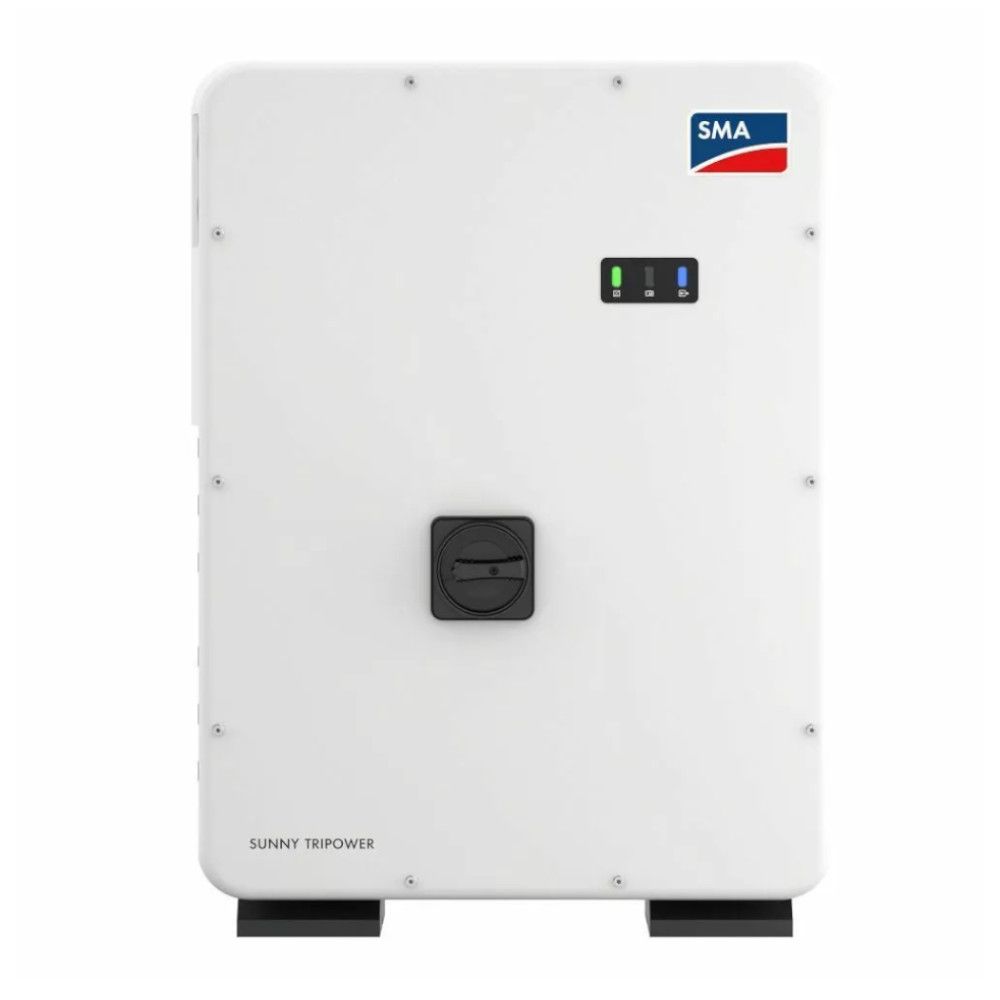

SMA Sunny Tripower 50kW Core 1 Inverter
SMA Sunny Tripower 50kW Core 1 Inverter
Couldn't load pickup availability
SMA Sunny Tripower 50kW Core 1 Inverter
The Sunny Tripower CORE1 is the world’s first free-standing string inverter designed for decentralized rooftop and ground-mounted PV systems, as well as covered parking areas. Its innovative design reduces installation time by up to 60% compared to traditional string inverters, while simultaneously lowering overall operational costs (OPEX).
From delivery and setup to ongoing operation, the Sunny Tripower CORE1 offers substantial savings in logistics, labor, materials, and services. Featuring an integrated Arc-fault Circuit Interrupter (AFCI), Wi-Fi for quick commissioning, plug-and-play communication, and smart grid support, it enables faster and more efficient PV installations.
Scalability for Maximum Energy Yields:
- Unique design supports DC
ratios up to 150%
- 50 kW capacity, scalable to megawatt levels
- Six independent MPP trackers ensure optimal energy generation, even in shaded conditions
Cost Savings:
- Grid and PV system protection (GP protection) compliant with VDE-AR-N-4105
- No need for an external tie switch
- Significantly reduced capital expenditure
Smart Inverter Screen for Quick Setup:
- One-click commissioning via QR code and WLAN
- No need for entering login credentials
- "Captive Portal" allows direct access to the Commissioning Wizard
Fully Integrated Design:
- Low balance of system (BoS) costs, streamlined project processes, and reduced material expenses
- Includes 12 direct string inputs, a DC disconnector, and optional AC and DC surge protection
OptiCool™ Active Cooling System:
- Ensures safe investment in solar energy
- Lowers service and maintenance costs
SMA SMART CONNECTED:
- Free automatic inverter monitoring
- Proactive communication in case of faults
- Simplified logistics with automatic replacement service
- Faster, more predictable servicing
| Brand | SMA |
|---|---|
| Rated Power (W) | 50,000 |
| Max DC Power (W) | 75,000 |
| Inverter Phase | 3 |
| Total No. of Strings | 12 |
| No. of MPP Trackers | 6 |
| MPPT Voltage Range / Rated Input Voltage (V) | 500-800 |
| Start-up Input Voltage (V) | 188 |
| Max. Input Voltage (V) | 1,000 |
| European Efficiency (%) | 97.8 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP65 |
| Depth (mm) | 621 |
| Height (mm) | 733 |
| Width (mm) | 569 |
| Product Weight (Kg) | 84 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 5 Years |
SMA Sunny Tripower Core 1 STP50-41 Datasheet
SMA Sunny Tripower Core 1 STP50-40 & STP50-41 Operating Manual
SMA Sunny Tripower Core 1 STP50-41 Quick Reference
