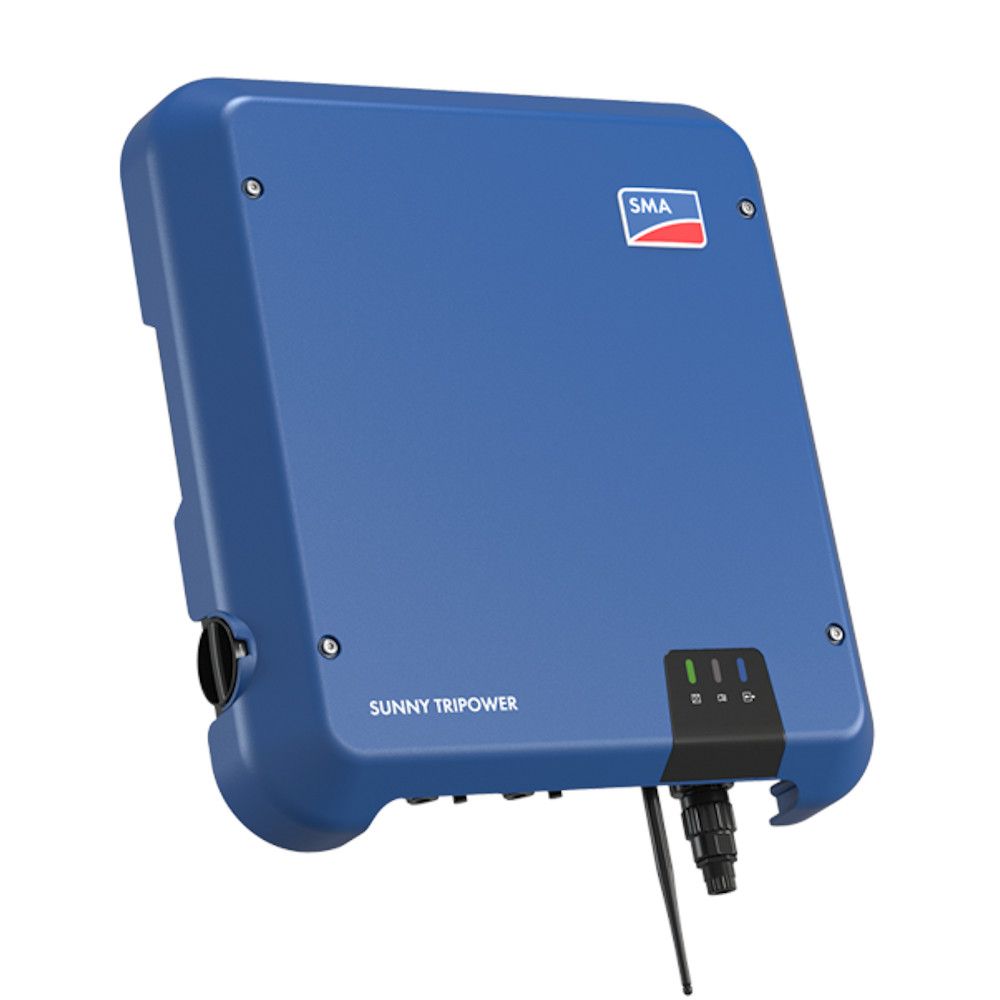

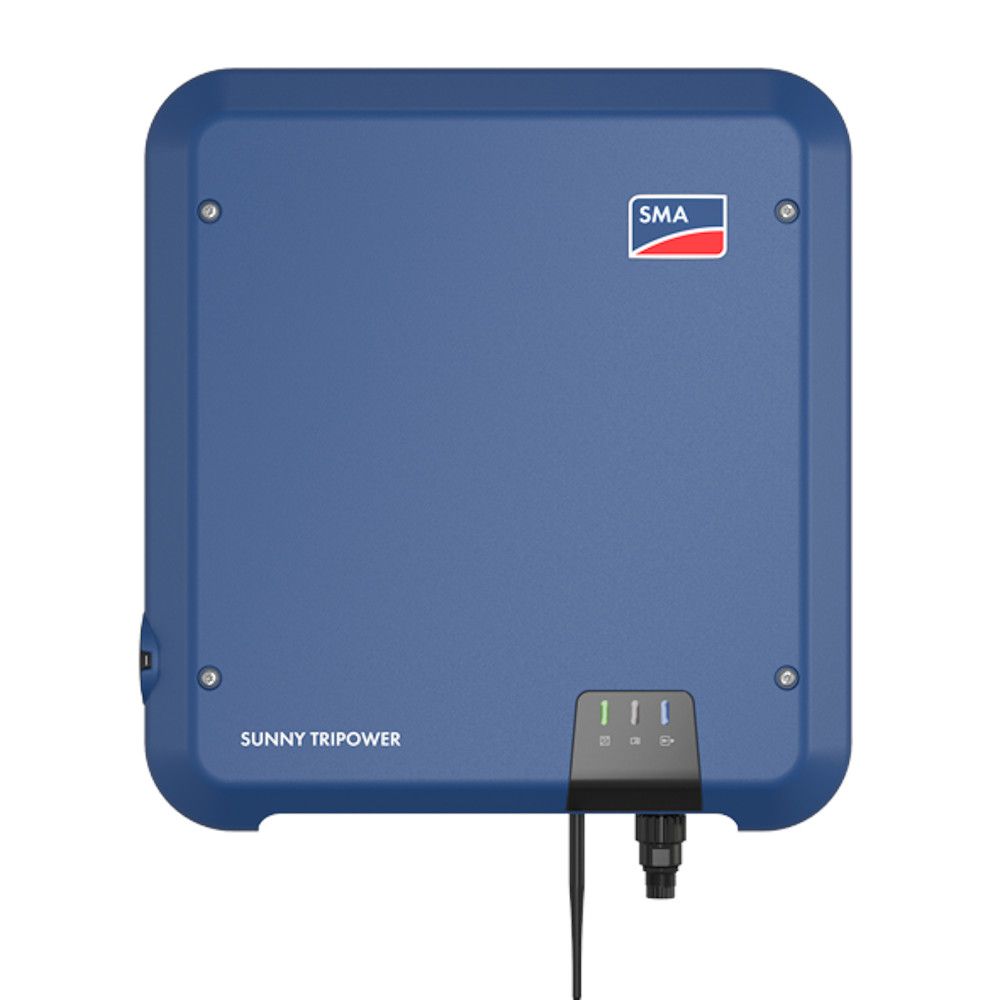

SMA Sunny Tripower STP6.0-3AV-40 Three Phase Inverter

SMA Sunny Tripower STP6.0-3AV-40 3Ph Inverter

The Sunny Tripower 3.0–6.0 enhances the power of PV systems in private households, combining top-notch inverter performance with user-friendly convenience. Equipped with integrated services and shade solutions, it tackles any roof challenge with ease. This reliable system ensures maximum solar yields and significantly lowers electricity costs.

Quick and Easy Installation: Weighing just 17 kilograms, the three-phase Sunny Tripower is designed for swift and space-efficient installation. Its integrated web interface allows for rapid commissioning via smartphone or tablet, offering a 100% plug-and-play setup.

Intelligent Solar Power Generation: Building on established features like SMA ShadeFix and SMA Smart Connected, the Sunny Tripower now includes integrated TS4-R communication for module optimization. The SMA ShadeFix system maximizes yields even in light shade, while TS4-R module optimizers can be added selectively for areas with heavy shading or complex roof structures, ensuring peak performance. Dynamic active power limitation allows for the direct use of excess energy, reducing reliance on grid power.

Flexible Expansion: With the Sunny Tripower, PV system operators and installers are always equipped with the latest technology. As solar power usage increases at home, intelligent energy management and SMA storage solutions can be seamlessly integrated into existing systems.

Investment Security: SMA Smart Connected offers free, automatic inverter monitoring, making SMA the first manufacturer to provide such a service. This feature allows for swift and precise service in case of inverter failure, proactively notifying both the PV system owner and the installer. This minimizes diagnosis and downtime, and if a replacement is needed, SMA ensures a fast and free replacement device, providing peace of mind for both owners and installers.

• Brand: SMA
• Rated Power (W): 6,000
• Max DC Power (W): 9,000
• Inverter Phase: 3
• Total No. of Strings: 2
• No. of MPP Trackers: 2
• MPPT Voltage Range / Rated Input Voltage (V): 260-800
• Start-up Input Voltage (V): 150
• Max. Input Voltage (V): 850
• European Efficiency (%): 97.6
• Integrated DC Switch: Yes
• Inverter IP Rating: IP65
• Depth (mm): 176
• Height (mm): 470
• Width (mm): 435
• Product Weight (Kg): 17.0
• Grid Connection Standards (G98/G99/G100): G98
• Warranty Period: 5 Years

SMA Sunny TRIPOWER 3.0-6.0 Data Sheet

SMA Sunny TRIPOWER 3.0-6.0 Operating Manual

SMA Sunny TRIPOWER 3.0-6.0Quick Reference Guide

SMA Sunny TRIPOWER 3.0-10.0 G98 Certificate of Compliance

SMA Sunny TRIPOWER 3.0-10.0 G99 Certificate of Compliance

SMA Sunny TRIPOWER 3.0-6.0 G83-2 Certificate of Compliance

SMA ENA G100 Compliance

SMA Sunny TRIPOWER 3.0-10.0 EU Declaration of Conformity

SMA ShadeFIX Presentation

SMA Limited Factory Warranty Home + Business
