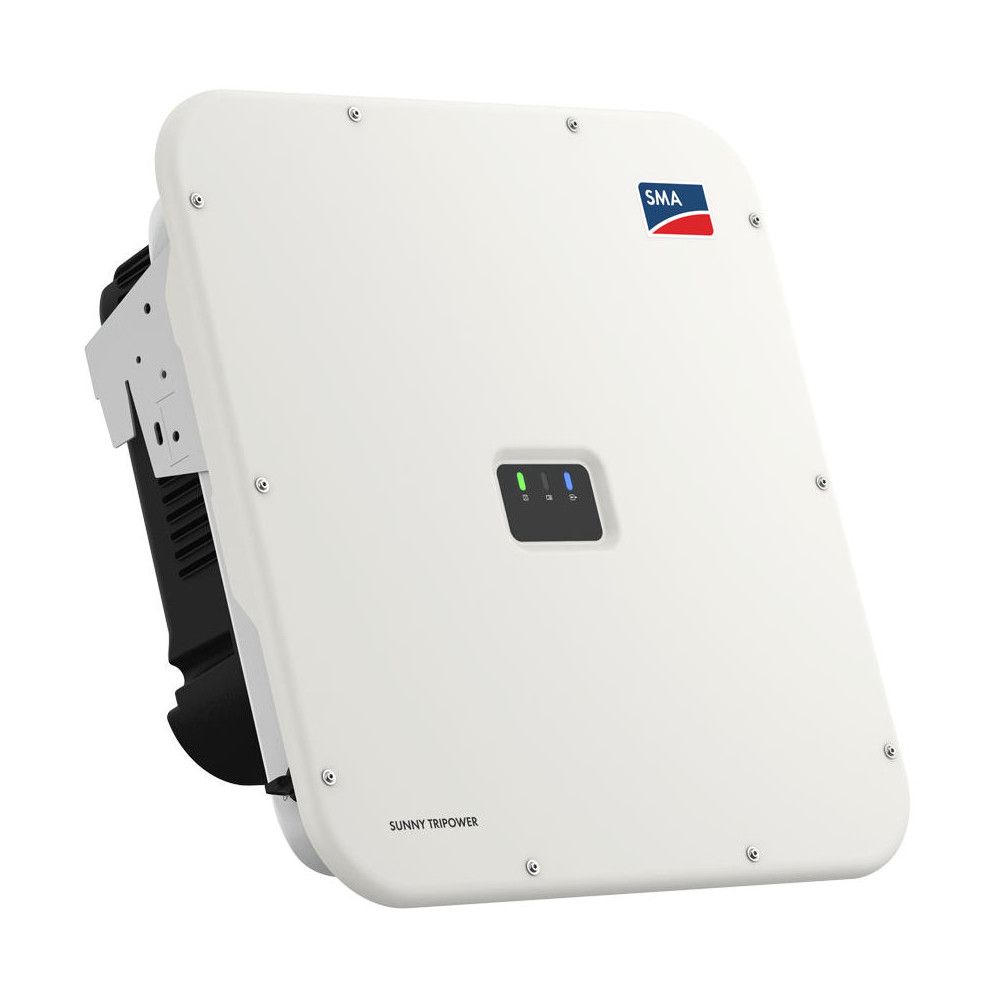

SMA Sunny Tripower X12
SMA Sunny Tripower X12
Couldn't load pickup availability
SMA Sunny Tripower X12
The new Sunny Tripower X is an advanced system solution designed for commercial and large residential PV systems, supporting outputs of up to 135 kW.
More than just an inverter, it functions as a system manager, featuring an integrated System Manager capability that directly connects to Sunny Portal powered by ennexOS. This allows monitoring of up to five SMA inverters and one energy meter, facilitating dynamic closed-loop control of both active and reactive power through SMA Dynamic Power Control.
With a wide input voltage range and high input current capacity, it is fully compatible with the latest high-performance PV modules. The innovative enclosure design ensures effective cooling of electronic components, ensuring a longer operational life for the Sunny Tripower X.
Installation is quick and easy, with centralized commissioning for all devices in the system. During operation, users benefit from integrated software features: SMA ShadeFix enhances PV yields even under partial shading, while SMA ArcFix effectively detects electric arcs, reducing fire risks reliably.
Please note: The SMA Sunny Tripower X inverters are compatible with UK settings once the latest firmware is activated, which can be downloaded from SMA or automatically via the ennexOS portal. For further assistance, you can contact their technical support at 01908 304899.
FEATURES:
Maximum Flexibility
- Enhanced successor to the Sunny Tripower TL-30
- Equipped with 3 MPP trackers for flexible system design
- DC SUNCLIX terminal and fuseless DC design
- Capable of monitoring and controlling up to five inverters (up to 135 kVA) and one energy meter
- All-in-one solution adaptable to any installation type
- Available in four power classes (12/15/20/25 kW)
- Supports up to 150% oversizing of the PV array
- Versatile for business applications with digital inputs and multifunction relay
- Simplified grid and system protection similar to CORE1
- Quick in-app commissioning via Wi-Fi and Ethernet
Maximum Yields
- Integrated SMA ShadeFix for yield optimization
- I-V curve diagnostics to easily identify yield loss
- SMA Smart Connected for enhanced performance monitoring
Safety Features
- SMA ArcFix arc-fault circuit interrupter (AFCI)
- DC overvoltage protection
- Simplified grid and PV system protection
- Standard 5-year warranty
PV Expertise
- Built on 40 years of experience in photovoltaics
- Designed for long-term reliability and performance
- Advanced system knowledge
- Made in Germany
| Brand | SMA |
|---|---|
| Rated Power (W) | 12,000 |
| Max DC Power (W) | 18,000 |
| Inverter Phase | 3 |
| Total No. of Strings | 6 |
| No. of MPP Trackers | 3 |
| MPPT Voltage Range / Rated Input Voltage (V) | 206-800 |
| Start-up Input Voltage (V) | 188 |
| Max. Input Voltage (V) | 1,000 |
| European Efficiency (%) | 97.7 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP65 |
| Depth (mm) | 266 |
| Height (mm) | 762 |
| Width (mm) | 728 |
| Product Weight (Kg) | 35 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 5 Years |
