Solplanet 3.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

Name: Solplanet 3.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC
Brand: Solplanet
SKU: ASW3K-LT G2 PRO
Price: 560.0 GBP
Availability: InStock

Solplanet 3.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

£560.00 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

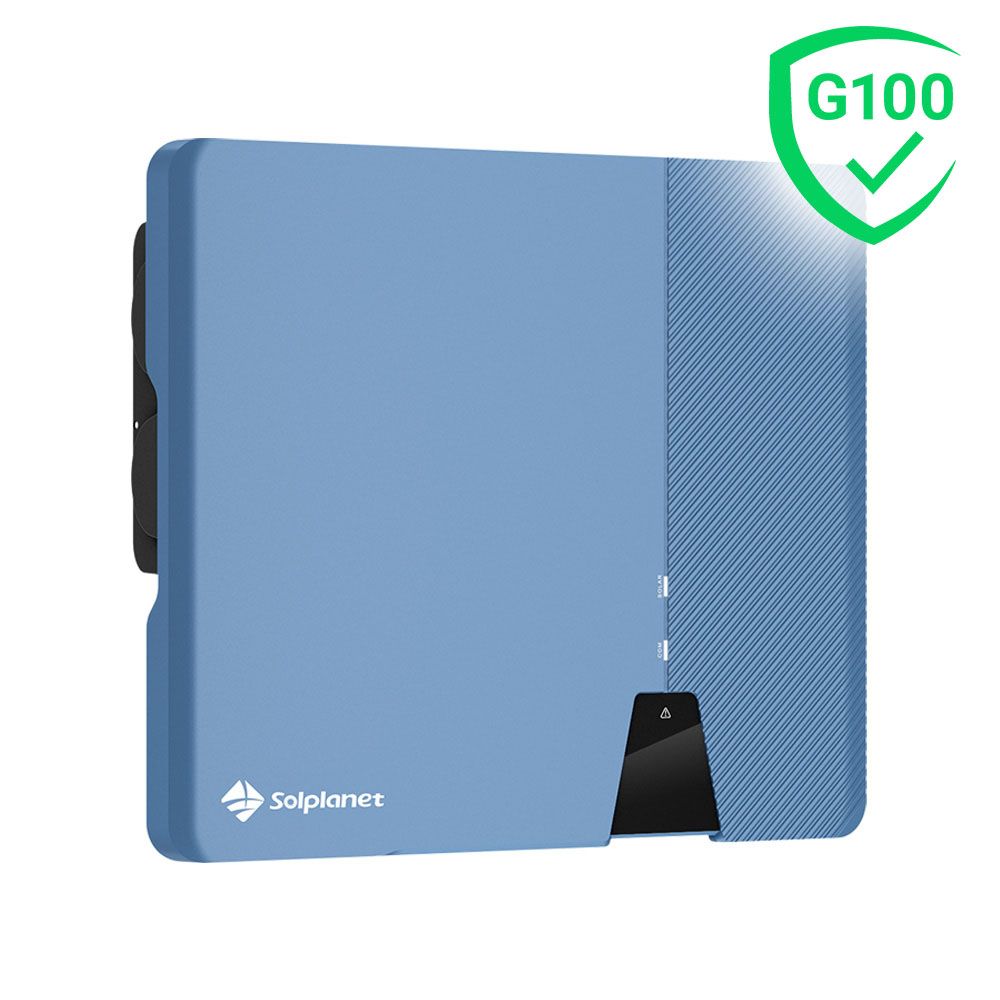

Solplanet ASW LT G2 Pro, 3.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

The ASW 3-10K LT-G2 Pro three-phase string inverter series brings the latest innovations for residential and commercial use.

These inverters feature 2 independent MPP trackers and a rated input current of up to 20A per MPPT. They are perfectly compatible with high-power, bifacial, and larger-size wafer-based solar panels. A wide MPPT range and the ability to oversize the PV power array by 150% ensure high energy yield and flexibility in nearly any application.

Solplanet’s cloud-based app offers a user-friendly interface for quick setup and easy commissioning.

KEY FEATURES:

Quick and easy installation with standard tools
Compact wall mount design (bracket included)
Maximum 20A input current, ideal for bifacial and large area PV modules
Wide MPP voltage range of 150V-1000V with low startup voltage for increased generation in low light conditions
150% PV array oversizing for higher yields
SUNCLIX DC plug-in connectors
Built-in Type II surge protection device for both DC and AC sides
IP66 protection design for outdoor use
Easy commissioning and monitoring with the cloud-based Solplanet app
Wi-Fi stick included
10-year warranty

Brand	Solplanet
Rated Power (W)	3,000
Max DC Power (W)	4,500
Inverter Phase	3
Total No. of Strings	2
No. of MPP Trackers	2
MPPT Voltage Range / Rated Input Voltage (V)	150-1000
Start-up Input Voltage (V)	180
Max. Input Voltage (V)	1,100
European Efficiency (%)	97.9
Integrated DC Switch	Yes
Inverter IP Rating	IP66
Depth (mm)	183
Height (mm)	435
Width (mm)	503
Product Weight (Kg)	15
Grid Connection Standards (G98/G99/G100)	G98, G100-2
Warranty Period	10 Years
