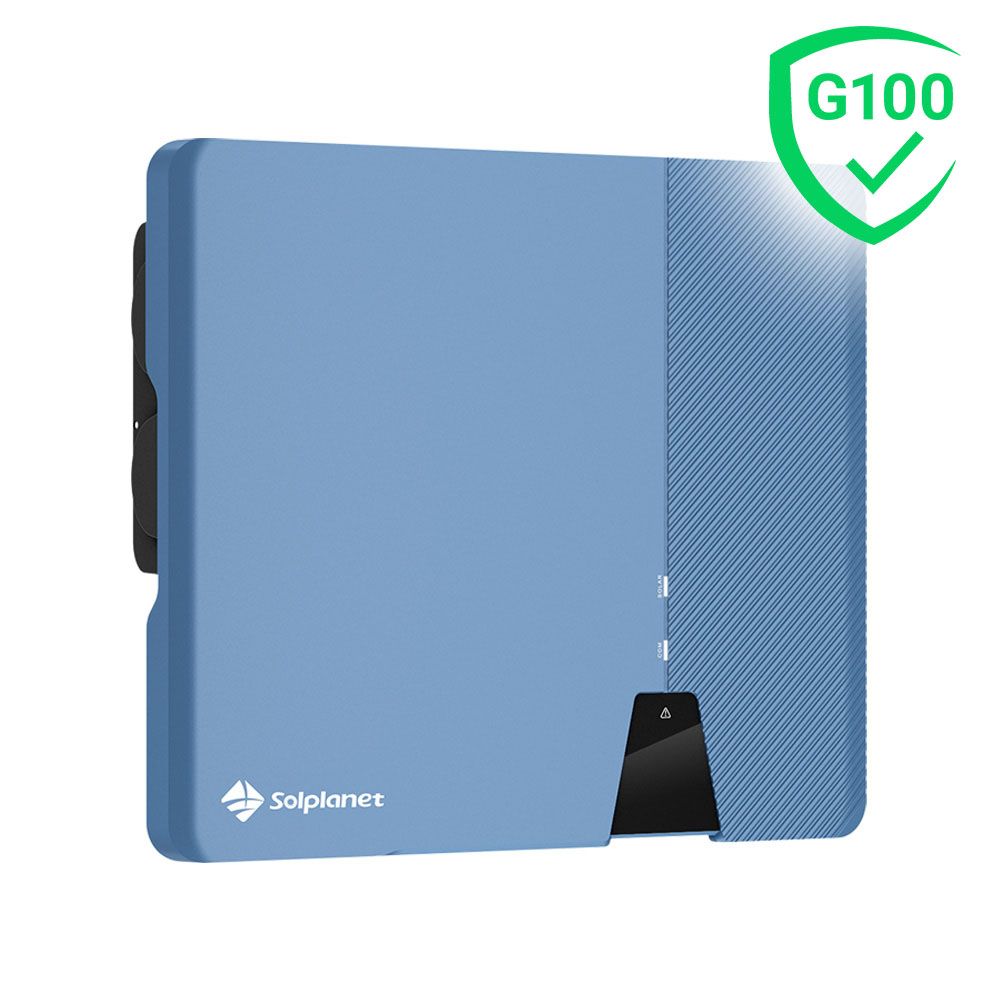

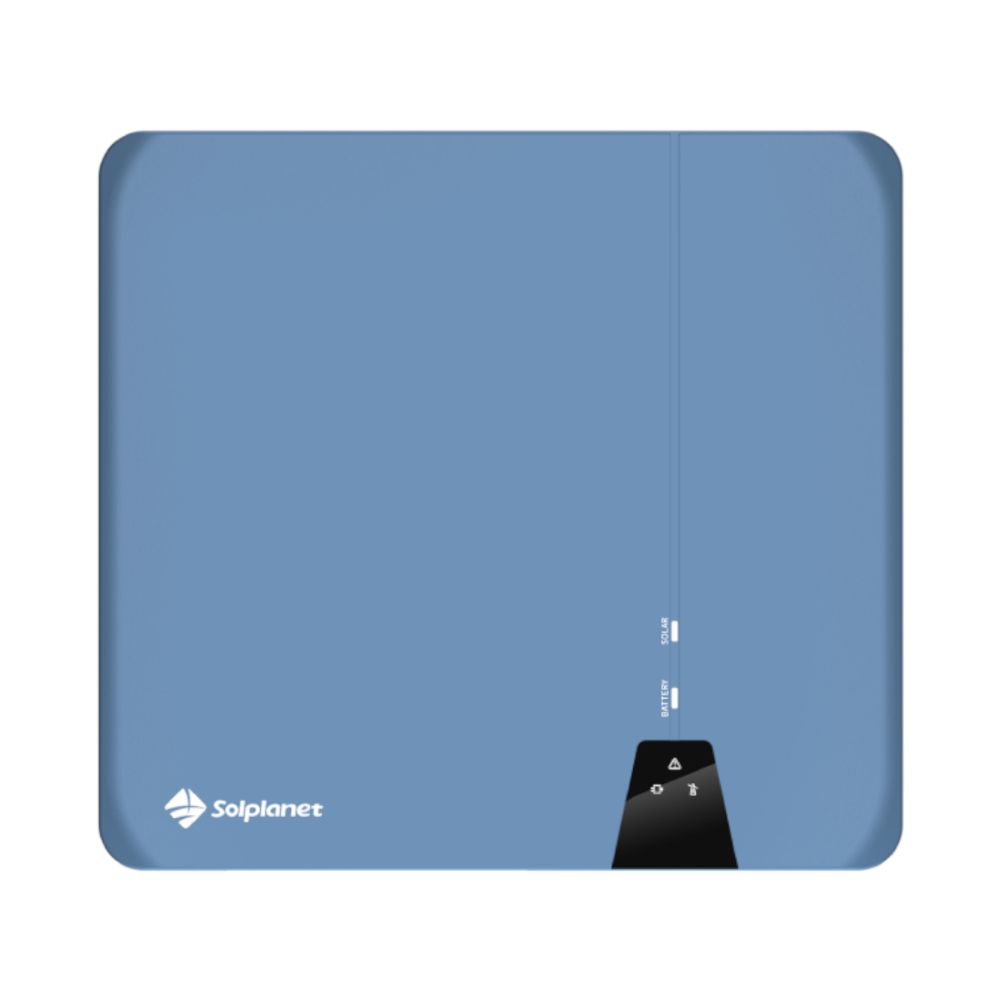

Solplanet 5.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

Solplanet ASW LT G2 Pro, 5.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

The ASW 3-10K LT-G2 Pro three-phase string inverter series introduces the latest advancements for both residential and commercial applications.

These inverters feature two independent MPP trackers and support up to 20A rated input current per MPPT. They are fully compatible with high-power, bifacial, and larger wafer-based solar panels. A broad MPPT range with 150% PV power array oversizing ensures high energy yield and adaptability for nearly any application.

Solplanet’s cloud-based app offers a user-friendly, quick setup and easy commissioning process.

KEY FEATURES:

• Quick and easy installation with standard tools
• Compact wall-mount design (bracket included)
• Maximum 20A input current, ideal for bifacial and large-area PV modules
• Wide MPP voltage range of 150V-1000V with low startup voltage for increased generation in low light conditions
• 150% PV array oversizing for higher yields
• SUNCLIX DC plug-in connectors
• Built-in Type II surge protection device on both DC and AC sides
• IP66 protection design for outdoor use
• Easy commissioning and monitoring with the cloud-based Solplanet app
• Wi-Fi stick included
• 10-year warranty

  Brand	Solplanet
  Rated Power (W)	5,000
  Max DC Power (W)	7,500
  Inverter Phase	3
  Total No. of Strings	2
  No. of MPP Trackers	2
  MPPT Voltage Range / Rated Input Voltage (V)	150-1000
  Start-up Input Voltage (V)	180
  Max. Input Voltage (V)	1,100
  European Efficiency (%)	97.9
  Integrated DC Switch	Yes
  Inverter IP Rating	IP66
  Depth (mm)	183
  Height (mm)	435
  Width (mm)	503
  Product Weight (Kg)	15
  Grid Connection Standards (G98/G99/G100)	G98, G100-2
  Warranty Period	10 Years
