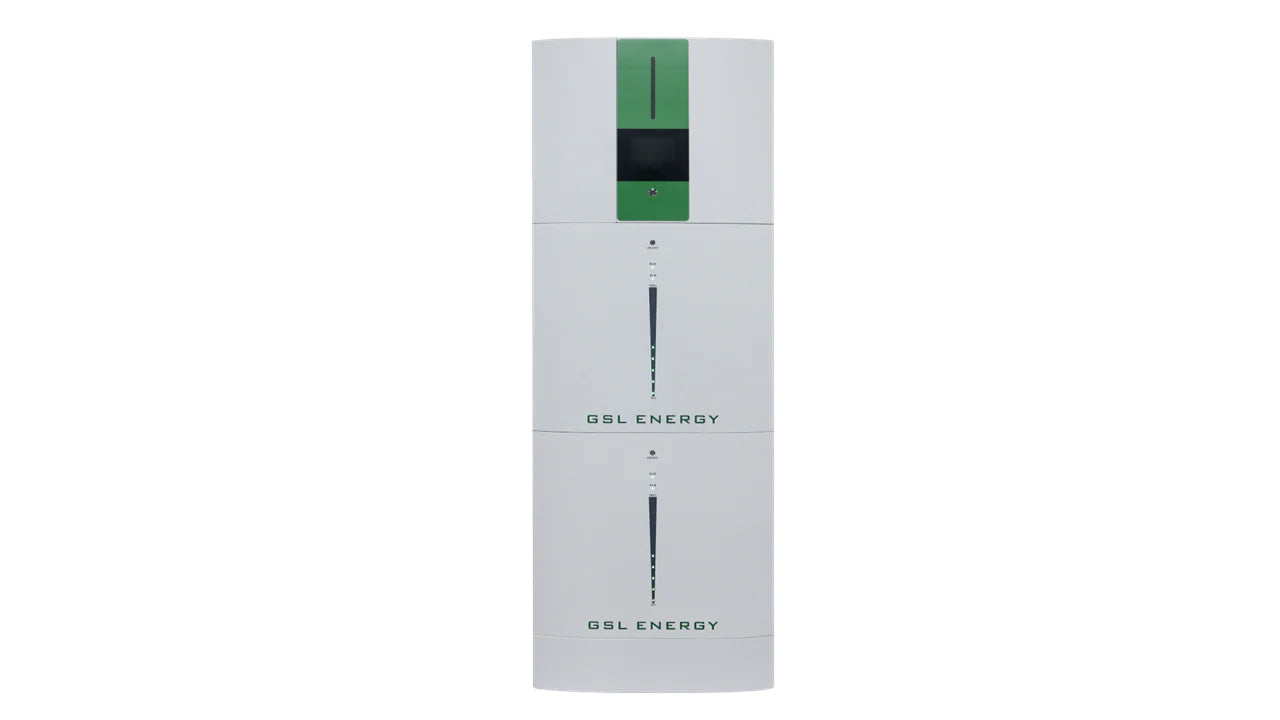

GSL All In One 5.5kw Hybrid & AC On & Off grid home battery storage system with 20.48kwh battery

The GSL All in One battery storage system is versatile, offering both on and off-grid capabilities with a capacity of 20.48kWh. Additional batteries can be seamlessly integrated, expanding the storage capacity.

Equipped with a 5.5kWh hybrid inverter, this system allows for charging from either solar panels with up to 6500W PV input or directly from the grid. Its charge and discharge rate of up to 5.5kWh is sufficient to support properties with average to high energy demands. The hybrid inverter is initially set at 80A, providing 4kWh, but can be increased to 100A with adequate ventilation to maintain optimal performance.

The setup options are diverse: it can function as a hybrid inverter, utilizing solar or grid power for charging, or as an AC-coupled charger alongside existing solar PV systems or solely from the grid.

Key Information:

• 10-year battery warranty & 5-year inverter warranty
• Depth of Discharge (D.O.D): 90%
• 6000 life cycles
• Maximum PV input power: 6500W
• Maximum charge current: 100A

Product Performance:

1. It serves as a versatile multi-function inverter/charger/solar system.
2. Combines inverter, solar charger, and battery functions to offer uninterrupted power support with a compact design.
3. Features an LCD display for easy configuration of input voltage range and battery charging current, along with AC/Solar Charge priority settings.
4. Compatible with mains voltage or generator power, with automatic restart during AC recovery.
5. Allows flexible matching of battery capacity with standard packages or external batteries.
6. Includes a wide PV input range MPPT controller for direct conversion of solar energy to loads.
7. Integrated design for easy transportation and installation.
8. Provides overload, over-temperature, and short-circuit protection.
9. Meets various certification requirements (CE/ROSH/VDE/MSDS/UN38.3/IEC) for different countries.

Product Features:

• Safety ensured with LiFePO4 LFP Battery and triple protection at module, pack, and system levels.
• Simple modular design for easy handling and installation, occupying minimal space (0.15 sqm footprint).
• Interconnectivity facilitated through a global cloud platform and mobile app, allowing remote monitoring and control. Open APL support enables power internet applications.
