Sungrow 125kW P2 Inverter
Sungrow 125kW P2 Inverter
Regular price
£4,638.57 GBP
Regular price
Sale price
£4,638.57 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

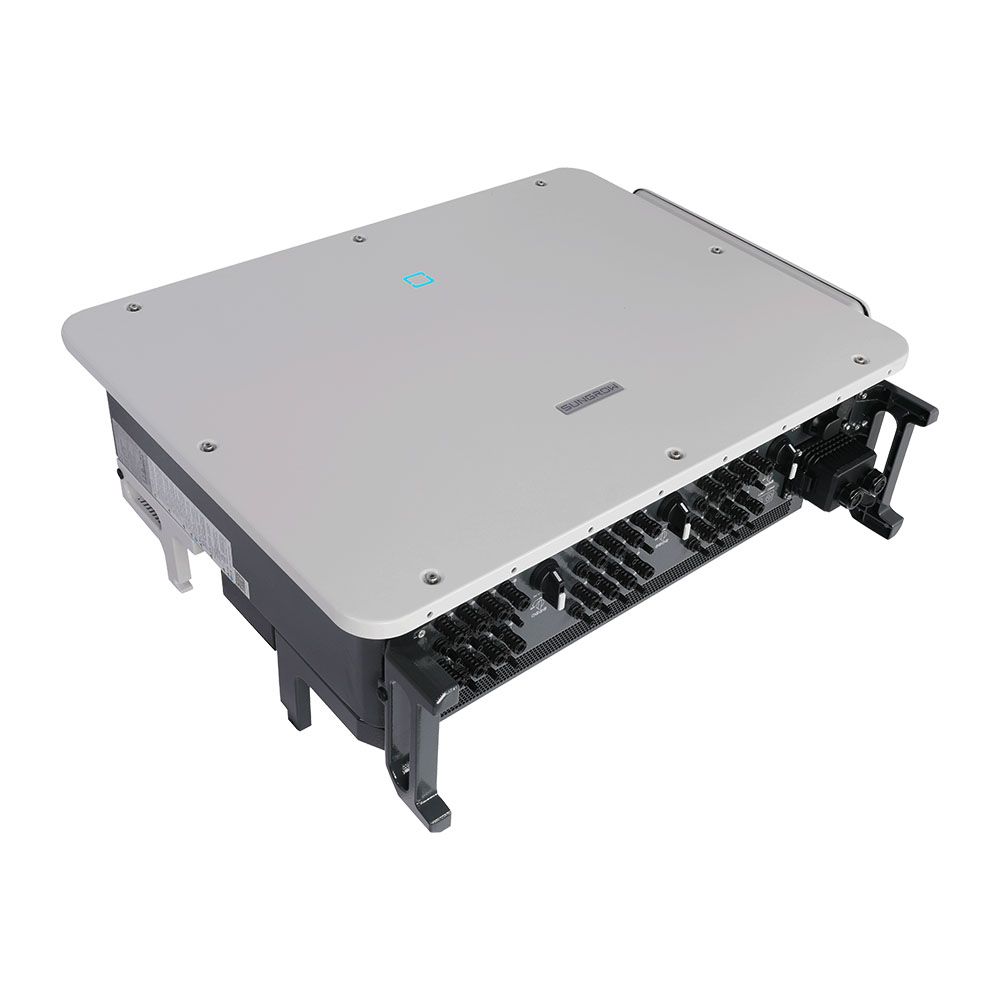

Sungrow 125kW P2 Inverter
The Sungrow SG125CX-P2 string inverter is ideal for commercial systems. With 12 MPPTs, it allows for better and more flexible solar power plant design. This inverter is easy for one person to install, compatible with high-power modules, and offers enhanced safety with AFCI 2.0 technology. Durable, high-quality fans ensure optimal operating temperatures at all times.
KEY FEATURES:
- Dynamic shading optimization mode
- 12 MPPTs with a max efficiency of 98.5%
- Grid fault record function for easy remote O&M
- Key component diagnosis and protection
- Compatible with max. 240mm² Al AC cables
- Compatible with over 500Wp+ PV modules
- Drawer-style cable sealing plate for AC cable pre-assembly
- DC Type I+II SPD, AC Type II SPD
- IP66 protection and C5 anti-corrosion
- Support for AFCI 2.0 function
- Max efficiency of 98.5%
- Smart IV Curve Diagnosis
- G99 Certified
- 5-year warranty
| Brand | Sungrow |
|---|---|
| Rated Power (W) | 125,000 |
| Max DC Power (W) | 175,000 |
| Inverter Phase | 3 |
| Total No. of Strings | 24 |
| No. of MPP Trackers | 12 |
| MPPT Voltage Range / Rated Input Voltage (V) | 180 - 1000V |
| Start-up Input Voltage (V) | 200V |
| Max. Input Voltage (V) | 1100V |
| Max. input current per MPPT | 30A |
| European Efficiency (%) | 98.3 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 360 |
| Height (mm) | 795 |
| Width (mm) | 1020 |
| Product Weight (Kg) | 87 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 5 Years |
Sungrow SG125CX-P2 User Manual
Sungrow SG125CX-P2 G99 Certificate
