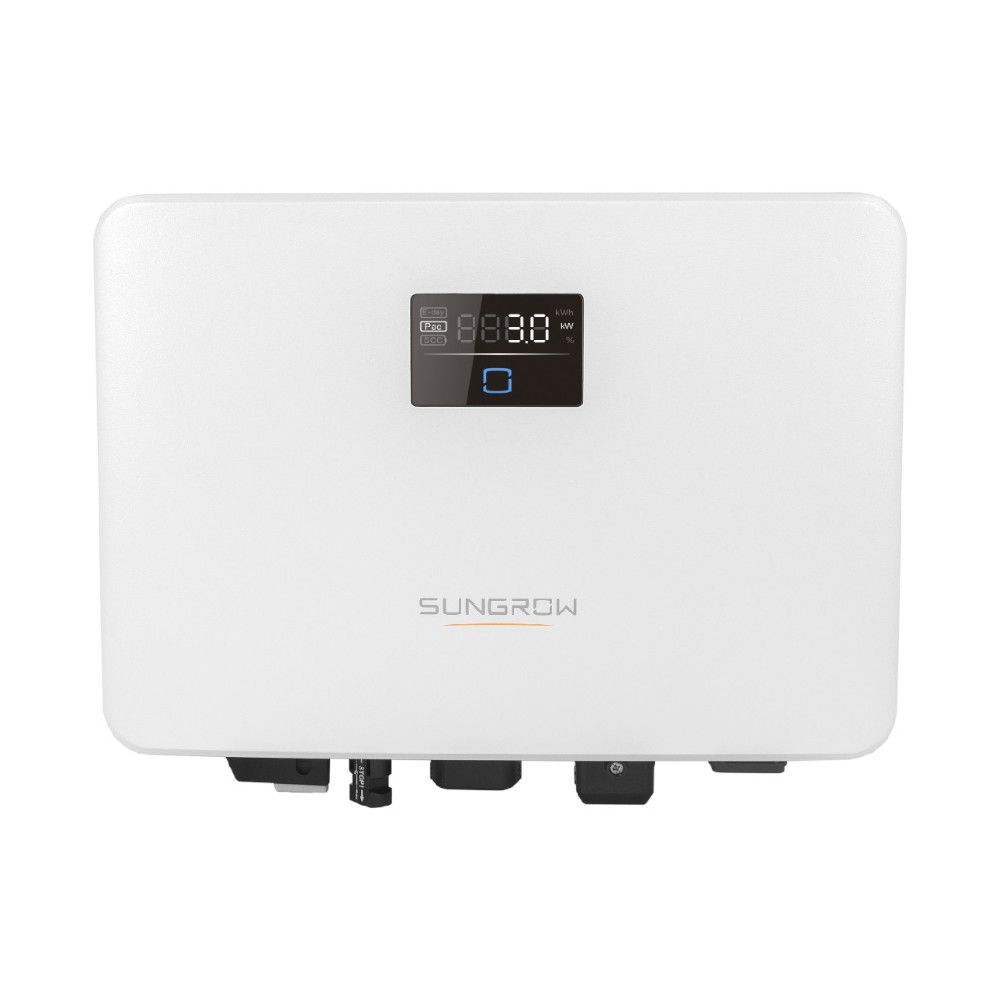

Sungrow 3kW Single Phase String Inverter - Single Tracker

The Sungrow 1-phase String Inverter has been a standout product since its initial release. Its user-friendly design, featuring a display and push-click-go connector, ensures easy handling. This inverter is an ideal choice for homes with limited rooftop space.

The plug-and-play installation makes setup simple, while its lightweight, compact design enhances heat dissipation.

Key Features:

• Single MPP tracker
• Maximum Input Current: 16A
• European Efficiency: 97.3%
• IP65 protection
• Built-in smart PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, DI (Ripple control & DRM)
• Weight: 6kg
• 10-year warranty.

  Brand	Sungrow
  Rated Power (W)	3,000
  Max DC Power (W)	4,500
  Inverter Phase	1
  Total No. of Strings	1
  No. of MPP Trackers	1
  MPPT Voltage Range / Rated Input Voltage (V)	40 - 560
  Start-up Input Voltage (V)	50
  Max. Input Voltage (V)	600
  Max. input current per MPPT	16A
  European Efficiency (%)	97.3
  Integrated DC Switch	Yes
  Inverter IP Rating	IP65
  Depth (mm)	120
  Height (mm)	225
  Width (mm)	320
  Product Weight (Kg)	6
  Grid Connection Standards (G98/G99/G100)	G98, G99
  Warranty Period

Sungrow SG2.0~3.0RS-S Datasheet

Sungrow SG2.0-3.0RS-S, SG3.0~6.0RS User Manual

Sungrow Brochure

Sungrow Manufacturer Warranty
