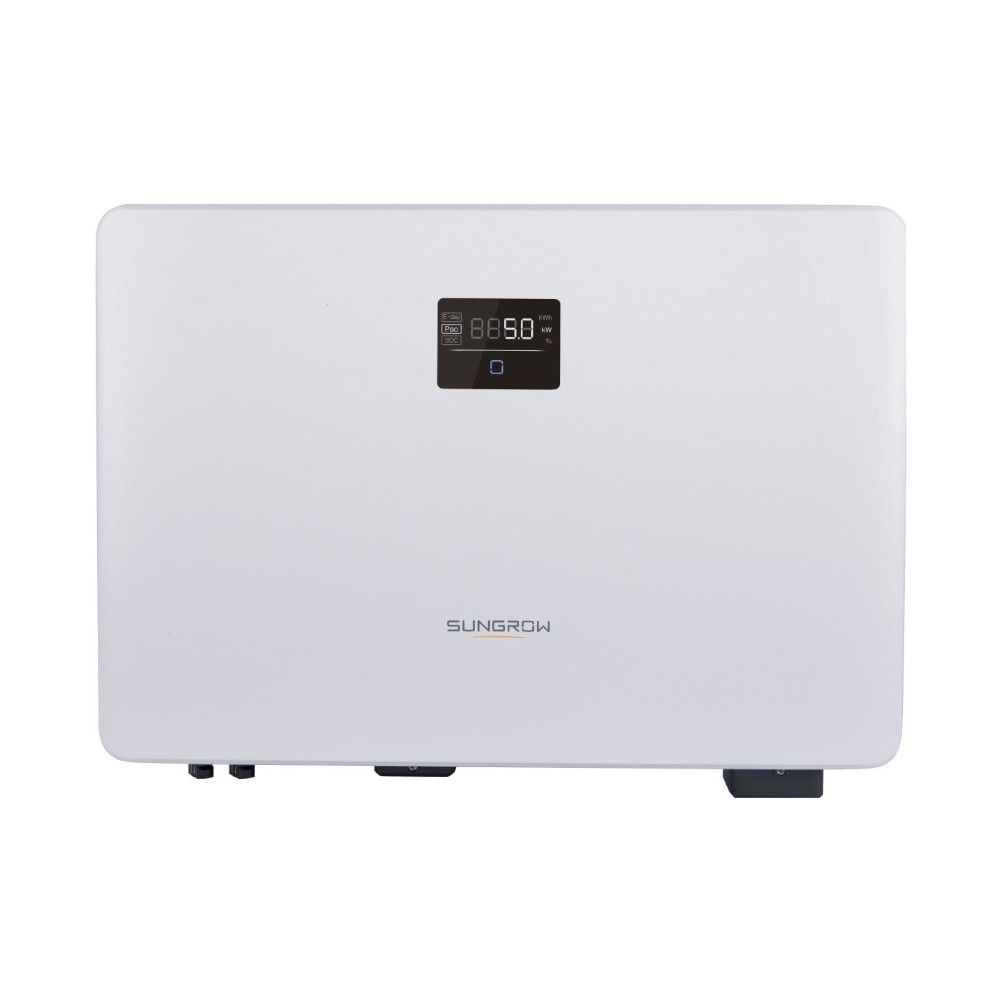

Sungrow 5kW Single Phase Hybrid Inverter - Dual Tracker

Sungrow 5kW Single Phase Hybrid Inverter - Dual Tracker

The Sungrow SHRS Single Phase Hybrid Inverters, available in power ratings from 3.0kW to 6.0kW, are perfect for residential solar systems. These inverters are well-suited for both new installations and retrofits.

The plug-and-play installation ensures an easy setup process, while their lightweight and compact design enhances heat dissipation.

Key Features:

• Dual MPP trackers
• Maximum Input Current: 32A
• Battery Voltage Range: 80V - 460V
• European Efficiency: 97.3%
• Integrated EMS with advanced customization
• IP65 protection rating
• Built-in smart PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, CAN
• Weight: 18.5kg
• 10-year warranty
• G99 Certified

  Brand	Sungrow
  Rated Power (W)	5,000
  Max DC Power (W)	7,500
  Inverter Phase	1
  Total No. of Strings	2
  No. of MPP Trackers	2
  MPPT Voltage Range / Rated Input Voltage (V)	40 - 560
  Start-up Input Voltage (V)	50
  Max. Input Voltage (V)	600
  Max. input current per MPPT	16A
  European Efficiency (%)	97.3
  Integrated DC Switch	Yes
  Inverter IP Rating	IP65
  Depth (mm)	170
  Height (mm)	340
  Width (mm)	490
  Product Weight (Kg)	18.5
  Grid Connection Standards (G98/G99/G100)	G100-2, G99
  Warranty Period	10 Years

Sungrow SH3.0~6.0RS Datasheet

Sungrow SH3.0~6.0RS Quick Installation Guide

Sungrow SH3.0~6.0RS G99 Certificate

Sungrow Brochure

Sungrow Manufacturer Warranty.
