Sungrow HV Battery Combo Kit (SBR064) – 6.4kWh
(includes 2 x 3.2 kWh Batteries)
The Sungrow SBR Series is a modular high-voltage battery system designed for residential energy storage, utilizing LFP (LiFePO4) cells and compatible with Sungrow hybrid inverters.
The Sungrow SBR064 includes two 3.2 kWh stackable battery modules, pre-wired with a rated DC power of 3.84 kW. Due to its lower voltage, this system is suitable only for Sungrow single-phase hybrid series (SH-XX RS).
This dual-battery system delivers excellent performance, safety, flexibility, and ease of installation. It can be used to increase self-consumption and for backup applications.
Key Features:
- High Efficiency: Supports up to 30A continuous charging and discharging current.
- Depth of Discharge (DoD): 100%, allowing full utilization of the battery's capacity.
- Flexibility: Expandable throughout its service life, supporting 2-8 modules per stack (maximum of 4 stacks in parallel), with a capacity range of 6.4-25.6 kWh.
- Easy Installation: Compact and lightweight, suitable for single-person installation. Features plug-and-play, wireless stackability, and each module has handles and weighs 33 kg.
- Mounting Method: Floor stand.
- Easy Commissioning: Automatically recognized by the Sungrow iSolarCloud.
- Safety: Utilizes lithium iron phosphate cells and includes a multi-level protection design with extensive safety certifications, including VDE2510-50, and has an IP55 protection rating.
- Warranty: 10 years.
- Compatibility: Compatible with Sungrow’s 7kW single-phase electric chargers.
SBR064 System Components:
- 2 x SBR 3.2kWh HV Batteries
- 1 x Dummy Battery Unit (empty module)
- SBR Accessory Pack
Monitoring:
- Includes the Winet-S communication dongle and the S100 meter. The Winet-S offers both WiFi and Ethernet connectivity, allowing flexible installation. Commissioning can be done on-site or online. Sungrow’s iSolarCloud app (available for web and mobile) facilitates data visualization.
Overall, the Sungrow SBR064 offers a reliable, scalable, and user-friendly solution for residential energy storage needs.
| Brand | Sungrow |
|---|---|
| Product Weight (Kg) | 90 |
| Manufacturer Part Number | Sungrow SBR064 Combo (Accessory box AST03129, Empty module AS100613, 2x SMR032 ASA00460) |
| Battery Power (kWh) | 6.4 |
| High / Low Voltage Battery | High Voltage |
| Nominal Voltage (V) | 128 |
| Depth Of Discharge (%) | 100 |
| Backup Capable | Yes |
| Battery IP Rating | IP55 |

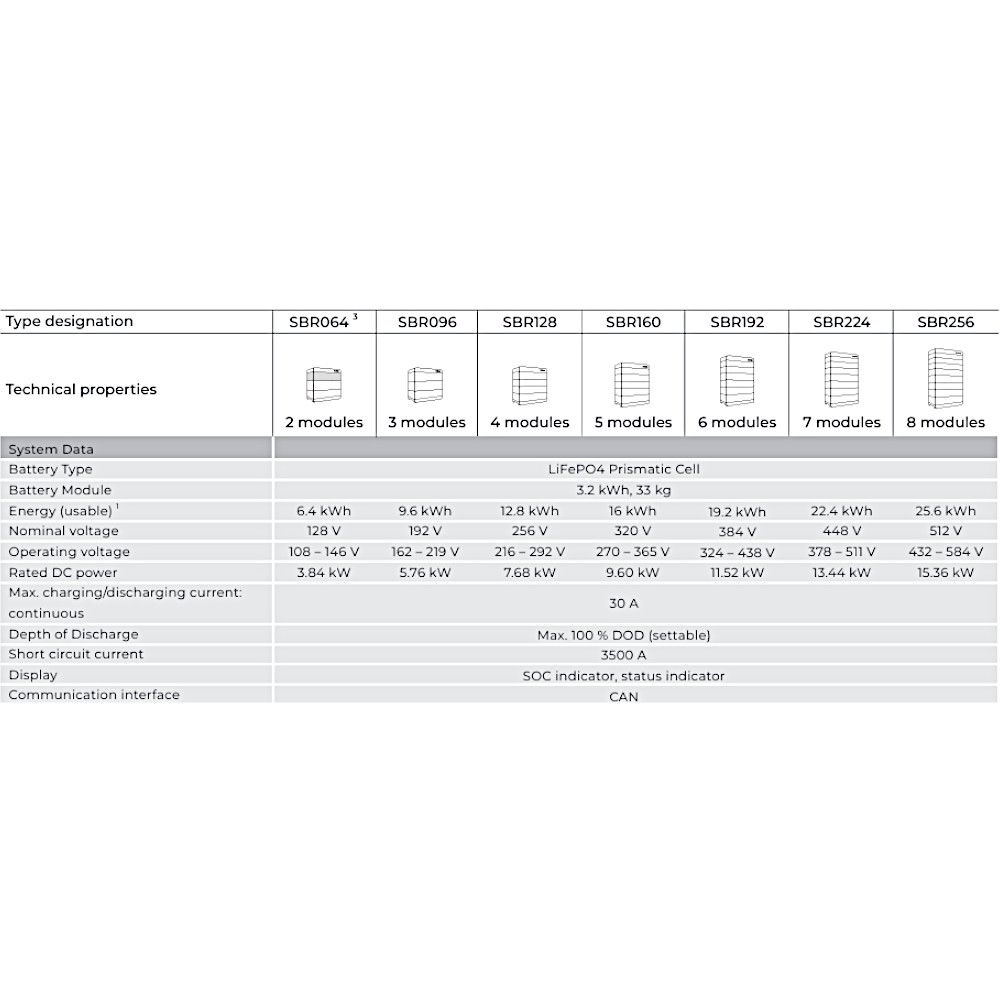

Sungrow HV Battery SBR064_SBR256 Datasheet
