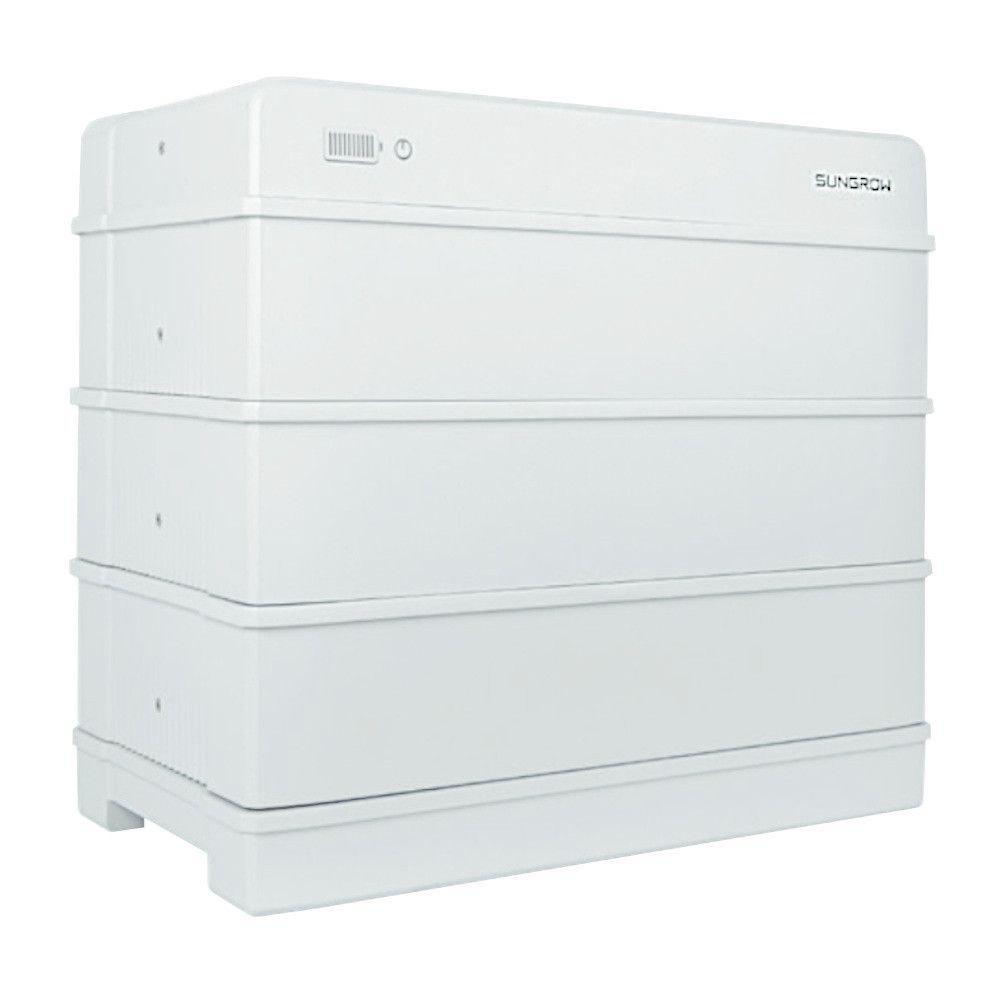

Sungrow SBR High Voltage Battery Module 3.2kWh
The Sungrow Battery Module 3.2kWh is an integral part of the SBR Battery System and cannot be used independently.
This system features a stackable modular design, facilitating easy installation without any wiring.
Each stack can accommodate between 3 to 8 battery modules, and up to 4 stacks can be connected in parallel, providing a maximum usable storage capacity of 102.4kWh.
Key Features:
- Battery Type: LiFePO4 Prismatic Cell
- Usable Battery Capacity: 3.2 kWh
- Nominal Voltage: 64V
- Communication Interface: CAN
- Degree of Protection: IP55
- Dimensions (WxHxD): 625 x 130 x 330 mm
- Weight: 33 kg
- Warranty: 10 Years
| Brand | Sungrow |
|---|---|
| Product Weight (Kg) | 33 |
| Manufacturer Part Number | SBR 3.2 kWh battery module (ASA00460) |
| Battery Power (kWh) | 3.2 |
| High / Low Voltage Battery | High Voltage |
| Nominal Voltage (V) | 64 |
| Depth Of Discharge (%) | 100 |
| Battery IP Rating | IP55 |
| Manufacturer Part Number | SBR 3.2 kWh battery module (ASA00460) |
