Sunshine Solar
Sunshine Solar & Wind Power Kit 422W - 12V
Sunshine Solar & Wind Power Kit 422W - 12V
No reviews
Regular price
£1,080.00 GBP
Regular price
Sale price
£1,080.00 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Maximize renewable energy with the Sunshine Solar and Wind Power kit. With a peak output of 422W at 12V, it's perfect for motorhomes, boats, caravans, and remote buildings. The kit includes the HRDi Solar and Windcharger controller, utilizing advanced technology to efficiently manage charging from solar panels and small Rutland wind turbines to one or two battery banks.
This Kit Contains:
- Sunshine Solar Panel (160W, 12V Crystalline)
- 6M Extension Cables & Connectors
- 10 x Twin Core Cable (20A, 12V)
- Rutland 914i Windcharger (12V)
- HRDi Solar & Wind Controller (12V/24V)
Solar Panel Specifications:
- Max Power: 160W
- Max Power Current: 8.31A
- Max Power Voltage: 18.1V
- Short Circuit Current: 8.66A
- Open Circuit Voltage: 22.4V
- Operating Temp.: -45 to 80°C
- Max System Voltage: DC1000V
- Dimensions: 1470mm x 670mm x 35mm
- Weight: 11.20kg

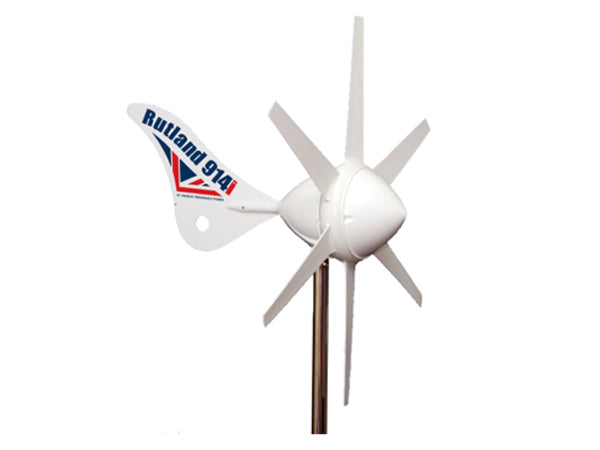

Rutland 914i Windcharger Specifications:
- Activation Windspeed: 3 m/s
- Output Voltage: 12V
- Dimensions (Packed): 13.1kg, 370mm x 300mm x 450mm
- Generator Type: Low friction 3 phase, brushless
- Yaw Rotation: Slipring allows 360° free rotation with low brush wear.
- Turbine Diameter: 910 mm
- Turning Radius: 557 mm
- Net Weight: 11.58 kg
Wind Power / Current Ratings:
- 5m/s (10 knots): 24W (1.7A)
- 11m/s (21 knots): 143W (10.3A)
- 15m/s (29 knots): 262W (18.9A)
