VICTRON EV CHARGING STATION NS

The EV Charging Station NS offers both three-phase and single-phase capabilities, providing a peak output of 22kW AC in three-phase mode or 7.3kW in single-phase mode.

Product Description:

The device mirrors the technical specifications of the EV Charging Station but features a fresh, modern design available in three colors, omitting the built-in LCD screen. Initial setup, configuration, and monitoring are facilitated through VictronConnect via Bluetooth or the integrated web interface via a WiFi Access Point or LAN. Integration with Victron Energy GX Device and VRM enables full remote control capabilities.

Beyond seamless integration with Victron Energy GX devices and VRM, this EV Charging Station NS can harness surplus solar energy within the Victron ecosystem to charge your vehicle directly. Manual and scheduled modes provide additional flexibility to cater to EV system requirements.

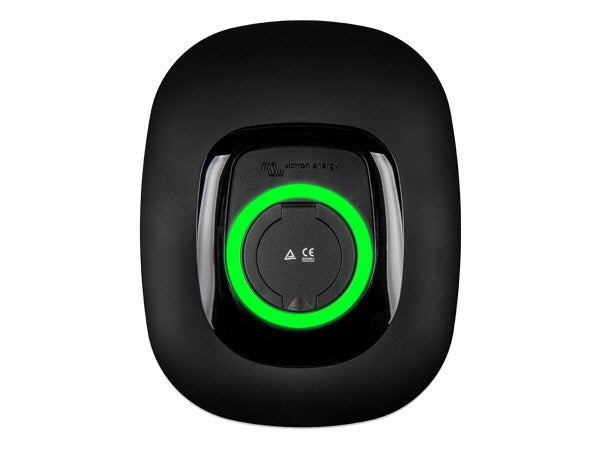

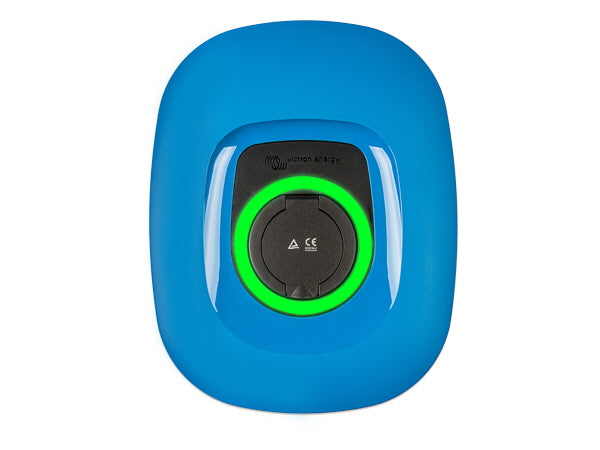

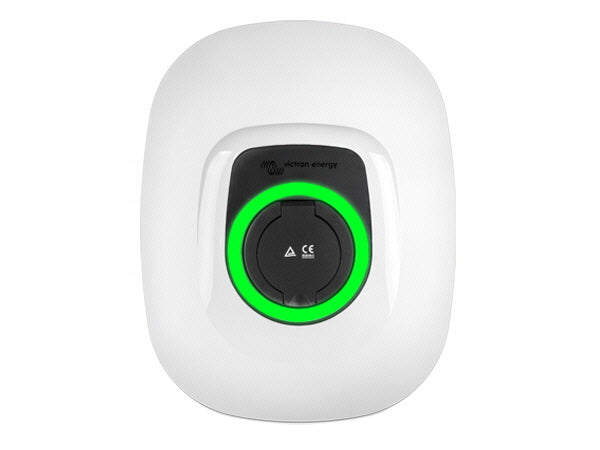

Highlighted by a customizable RGB light ring encircling the charging port, the device promptly communicates its status through various light effects—disconnected, charging, charged, etc.

Features of the Victron EV Charging Station NS:

• WiFi Connectivity: Utilizes 802.11 b/g/n for configuration, monitoring, and control, with the internal module configurable in Access Point or Station mode for setup and ongoing oversight.

• Bluetooth Control: Seamlessly operated and managed via the VictronConnect App, providing comprehensive control and overview of operational parameters and session statistics.

• Light Ring Status Indicator: Equipped with a fully programmable RGB Light Ring, facilitating quick status checks and offering customizable light effects to denote device state changes.

• Three Operating Modes:

  1. Manual Mode: Allows for the configuration of output current (6-32 A), enabling manual initiation or cessation of charging via various control interfaces.

  2. Automatic Mode: Optimizes PV system efficiency by utilizing surplus solar power exclusively for vehicle charging.

  3. Scheduled Mode: Enables charging at designated time intervals, facilitating cost-effective grid energy usage, especially during off-peak hours.

• Integration with GX Devices and VRM: Facilitates control and monitoring via GX device touch displays, Remote Console, and the VRM Portal, which also offers real-time and customizable reports.

Datasheet
