Viridian 335W PV16-G1 Clearline Fusion In-Roof PERC Monofacial, All Black
Viridian Solar's Clearline Fusion is a roof-integrated PV solution, featuring a sleek, low-profile design that replaces traditional roofing for enhanced aesthetics and simplified maintenance, now at a cost comparable to above-roof panels.
Clearline Fusion PV16 solar panels can be installed in both portrait and landscape orientations, giving building designers and installers flexibility to either maximize the roof's power output or meet specific power targets cost-effectively.
These panels use high-power monocrystalline silicon solar cells, offering a deep black color and exceptional color uniformity both across each panel and between panels.

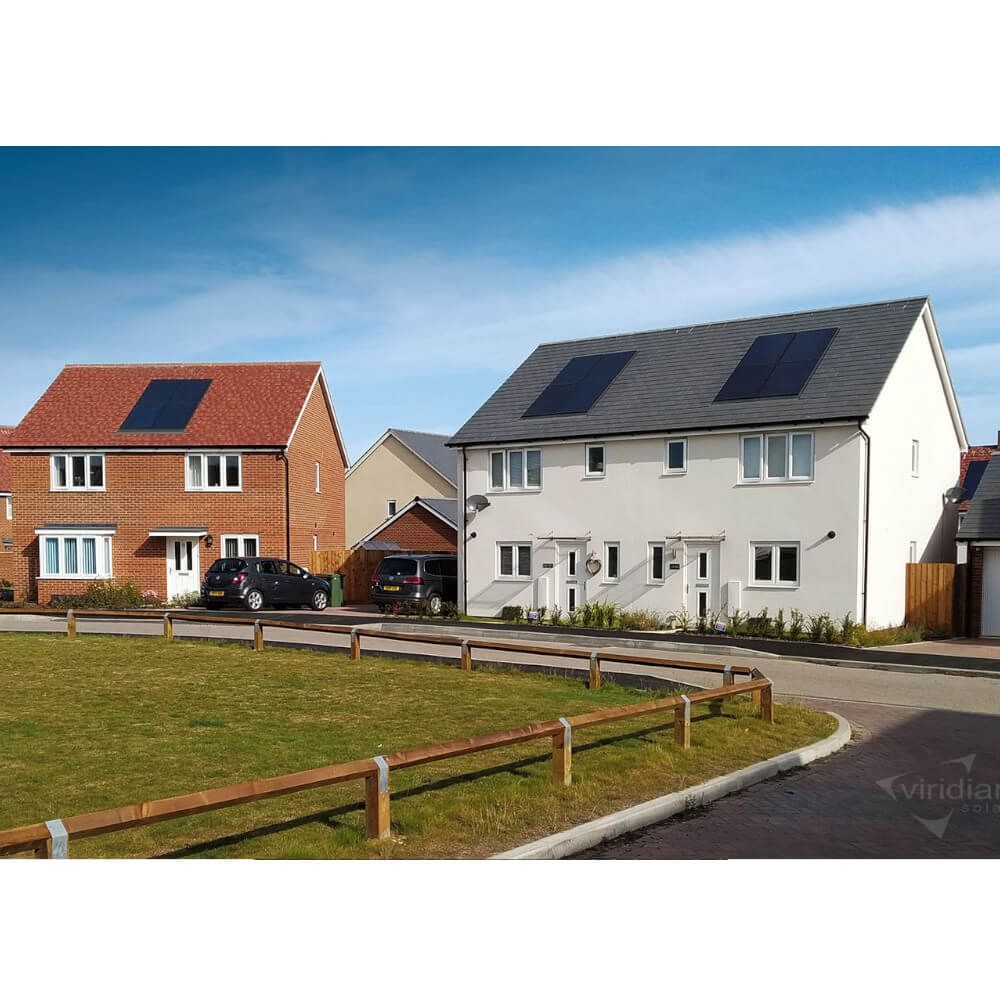

The Clearline Fusion system suits any roof, replacing tiles or slates to sit flush with the roofline, making the panels appear as an integrated part of the house rather than an afterthought, unlike above-roof rack-mounted systems.
KEY FEATURES:
- All Black Panel
- Half-cut PERC cells
- Simple roof integration with a clean, low-profile aesthetic for both new builds and retrofits
- Seamlessly integrates with roof tiles or slates with no visible cables or brackets
- Rapid installation times of less than 45 minutes per kWp
- Highest fire rating and wind resistance without roof modifications
- Compatible with a wide range of slates and tiles, including special fixings for different batten thicknesses
- Module Efficiency: 20.7%
- Maximum System Voltage: 1,000V DC
- Genuine Staubli connectors
- Extended load tests: 5.40 kPa design load and 5.32 kPa wind load
- Fire rating: Broof T1, T2, T3, T4
- 10-Year Product Warranty; 25-Year Power Warranty
| Brand | Viridian |
|---|---|
| Power Class | 335 W |
| Watts/ m² | 199 |
| Cells | 120 Half Cells (6x20 half cells) |
| Frame Colour | Black |
| Backsheet | Black |
| Popular Features | P-Type, PERC, Monofacial, All Black Panels |
| Module Efficiency (%) | 20.7 |
| Open Circuit Voltage - Voc (V) | 42.0 |
| Short Circuit Current - Isc (A) | 10.3 |
| Connector Type | MC4 Original |
| Length (mm) | 1,686 |
| Width (mm) | 1,000 |
| Thickness (mm) | 69 |
| Product Weight (Kg) | 21.7 |
| Panels per Pallet | 33 |
| Panels per Container | 462 (14 pallets per lorry) |
| MCS No | BBA 0032/94 |
| Warranty Period | 10 Years |
| Performance Warranty | 25 Years |
