Viridian 405W PV16-M10 Clearline Fusion In-Roof PERC Monofacial, All Black
Viridian Solar's Clearline Fusion is a roof-integrated PV solution that offers sleek, low-profile solar panels replacing traditional roof coverings for enhanced aesthetics and easy maintenance, now available at a cost comparable to above-roof panels.
Clearline Fusion PV16 solar panels can be installed in both portrait and landscape orientations, providing designers and installers flexibility to either maximize the power output of the roof area or achieve specific power targets cost-effectively.

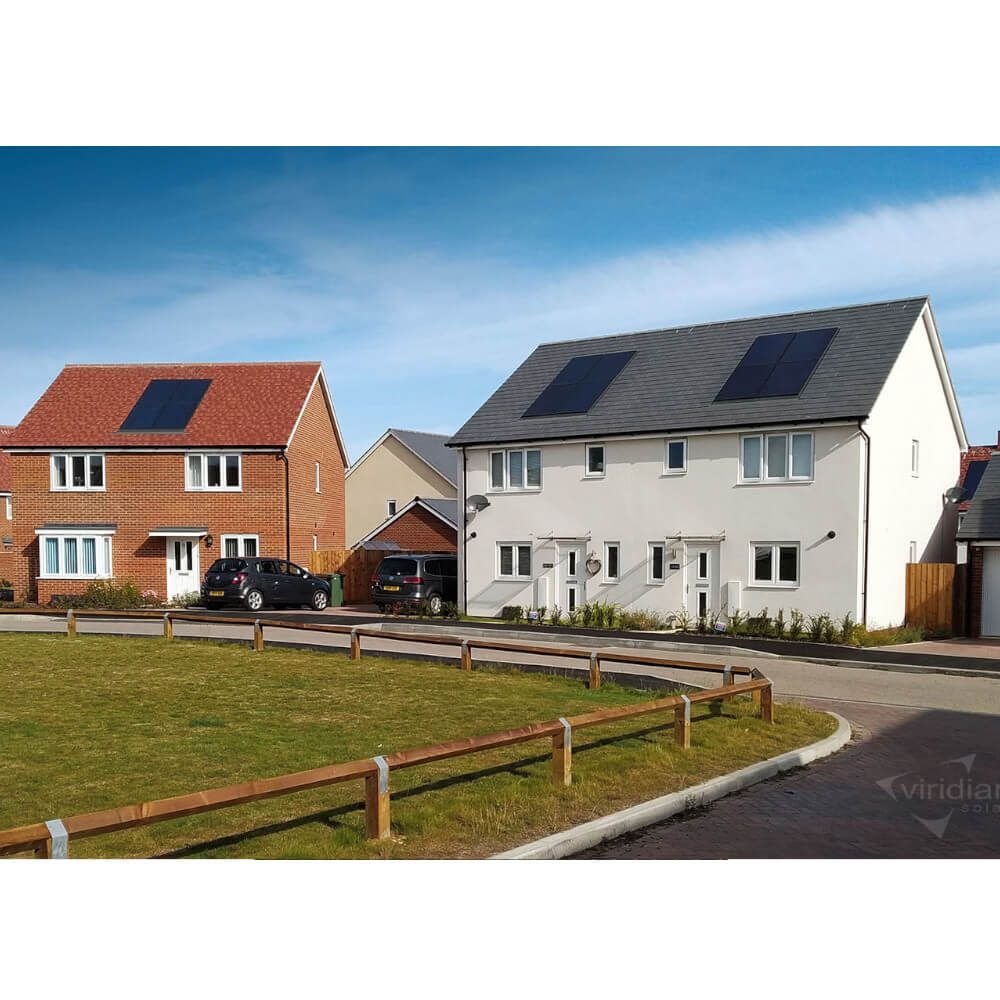

Featuring high-power monocrystalline silicon cells, these panels boast a deep black color with exceptional color uniformity across and between panels. The Clearline Fusion system is designed to suit any roof, replacing tiles or slates so that the panels sit lower in the roofline, making them look like an intended part of the house rather than an afterthought.
Key Features:
- All Black Panel
- Half-cut PERC cells
- Simple roof integration with a clean, low-profile aesthetic for both new builds and retrofits
- Seamlessly integrates with roof tiles or slates with no visible cables or brackets
- Rapid installation times of less than 45 min/kWp
- Highest fire rating and wind resistance without roof modifications
- Compatible with a wide range of slates and tiles, including special fixings for different batten thicknesses
- Module Efficiency: 21.5%
- Maximum System Voltage: 1,000V DC
- Genuine Staubli connectors
- Extended load tests: 5.40 kPa design load and 5.32 kPa wind load
- Fire rating: Broof T1, T2, T3, T4
- 10-Year Product Warranty; 25-year power warranty
| Brand | Viridian |
|---|---|
| Power Class | 405 W |
| Watts/ m² | 207 |
| Cells | 108 Half Cells (6X18 half cells) |
| Frame Colour | Black |
| Backsheet | Black |
| Popular Features | P-Type, PERC, Monofacial, All Black Panels |
| Module Efficiency (%) | 21.5 |
| Open Circuit Voltage - Voc (V) | 37.05 |
| Short Circuit Current - Isc (A) | 13.62 |
| Connector Type | MC4 Original |
| Length (mm) | 1,722 |
| Width (mm) | 1,134 |
| Thickness (mm) | 70 |
| Product Weight (Kg) | 25.0 |
| Panels per Pallet | 30 |
| Panels per Container | 420 (14 pallets per lorry) |
| MCS No | BBA 0032/140 |
| Warranty Period | 10 Years |
| Performance Warranty | 25 Years |
Viridian 400-405W Clearline Fusion PV16 M10 Datasheet
