Viridian Clearline 2.5kW 1ph Inverter, 1 MPPT, With DC
Viridian Clearline 2.5kW 1ph Inverter, 1 MPPT, With DC
Regular price
£402.65 GBP
Regular price
Sale price
£402.65 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Order Upon Request

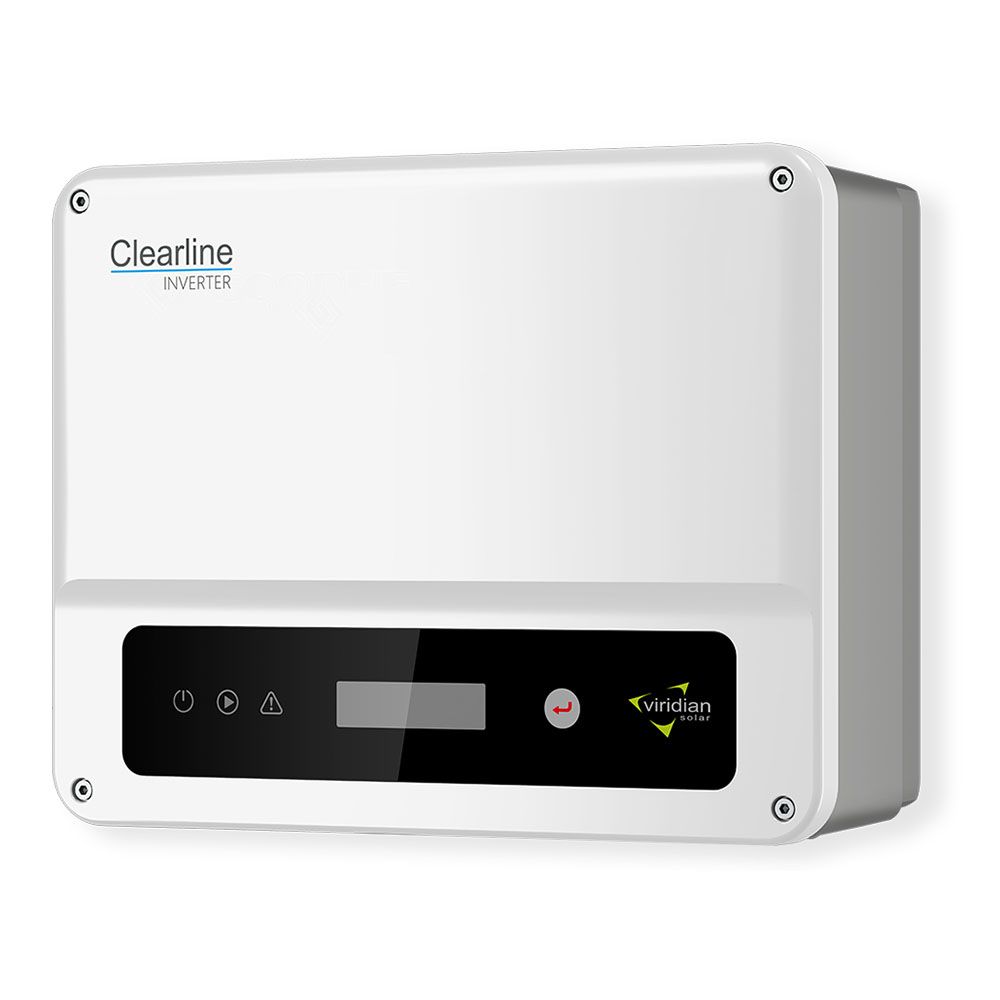

Viridian Clearline 2.5kW 1ph Inverter, 1 MPPT, With DC
The Clearline CSI2000 is a lightweight and compact residential inverter with a maximum DC voltage of 600V and a start voltage of 50V. It includes one MPPT with a maximum input of 15A, a DC switch, surge protection, and an optional AFCI.
A key feature enhancing its safety and reliability is the natural convection cooling system, which reduces the need for maintenance and lowers the risk of malfunctions by eliminating moving parts found in mechanical cooling systems.
KEY FEATURES:
- DC Connection
- Maximum efficiency of 97.6%
- Compact design
- Smart control
- Optional AFCI
- Protection degree: IP65
- Optional Export Limitation
- 10-year warranty
| Brand | Viridian Clearline |
|---|---|
| Rated Power (W) | 2,500 |
| Max DC Power (W) | 3,750 |
| Inverter Phase | 1 |
| Total No. of Strings | 1 |
| No. of MPP Trackers | 1 |
| MPPT Voltage Range / Rated Input Voltage (V) | 50-550 |
| Start-up Input Voltage (V) | 50 |
| Max. Input Voltage (V) | 600 |
| Max. input current per MPPT | 15A |
| European Efficiency (%) | 97.2 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP65 |
| Depth (mm) | 113 |
| Height (mm) | 230 |
| Width (mm) | 295 |
| Product Weight (Kg) | 5.8 |
| Grid Connection Standards (G98/G99/G100) | G98 |
| Warranty Period | 10 Years |
