Viridian Clearline 3.6kW 1ph Inverter, 2 MPPT, With DC
Viridian Clearline 3.6kW 1ph Inverter, 2 MPPT, With DC
Regular price
£564.55 GBP
Regular price
Sale price
£564.55 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

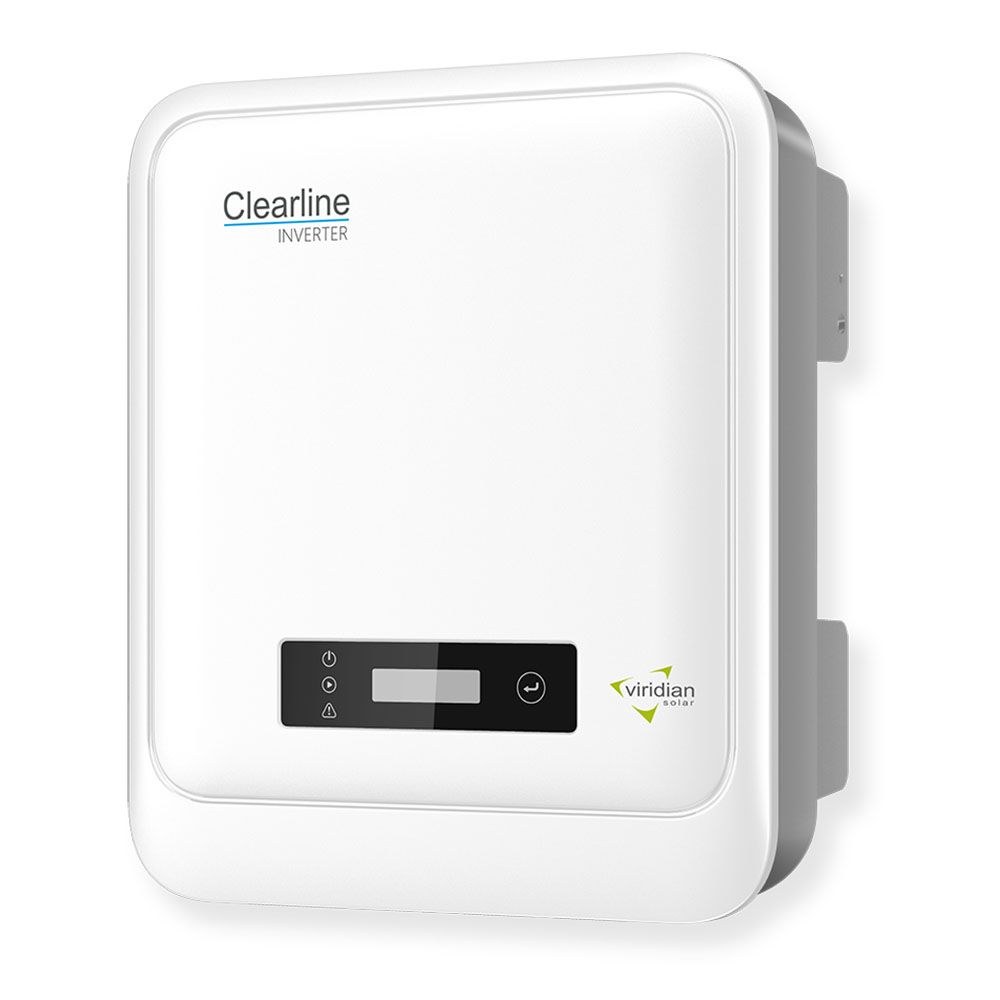

Viridian Clearline 3.6kW 1ph Inverter, 2 MPPT, With DC
The Clearline CSI3600 is a lightweight and compact residential inverter with a maximum DC voltage of 600V and a start voltage of 50V. It includes two MPPTs with a maximum input of 16A, a DC switch, surge protection, and an optional AFCI.
A key feature enhancing its safety and reliability is the natural convection cooling system, which reduces maintenance needs and lowers the risk of malfunctions by eliminating moving parts found in mechanical cooling systems.
KEY FEATURES:
- DC Connection
- Maximum efficiency of 97.9%
- Compact design
- Smart control
- Optional AFCI
- Protection degree: IP66
- Optional Export Limitation
- 10-year warranty
| Brand | Viridian Clearline |
|---|---|
| Rated Power (W) | 3,600 |
| Max DC Power (W) | 5,400 |
| Inverter Phase | 1 |
| Total No. of Strings | 2 |
| No. of MPP Trackers | 2 |
| MPPT Voltage Range / Rated Input Voltage (V) | 40-560 |
| Start-up Input Voltage (V) | 50 |
| Max. Input Voltage (V) | 600 |
| Max. input current per MPPT | 16A |
| European Efficiency (%) | 97.0 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 143 |
| Height (mm) | 410 |
| Width (mm) | 350 |
| Product Weight (Kg) | 12.8 |
| Grid Connection Standards (G98/G99/G100) | G98 |
| Warranty Period | 10 Years |
Viridian Clearline CSI3600-6000 Datasheet
Viridian Clearline CSI3600-6000 Installation Guide
Viridian Clearline CSI3600-6000 User Manual
